RT-N16 Multi-Functional Gigabit Wireless-N Router with Storage, Printer, & Media Server


From ASUS | Model #: ASRTN16



See more in

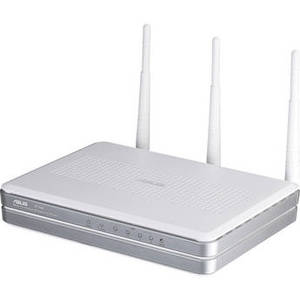

RT-N16 Multi-Functional Gigabit Wireless-N Router with Storage, Printer, & Media Server

Product Description

The RT-N16 Multi-Functional Gigabit Wireless N Router with Storage, Printer, & Media Server from Asus is a versatile router that can connect a variety of your wireless devices while also giving you advanced server functions. With three external antennae and a powerful CPU, this router can transfer data at a max rate of 300 Mbps for wireless-N devices and can also connect to devices that are compatible with the older 802.11b and 802.11g standards. In addition, it features four Ethernet 10/100/1000 ports, so you can establish fast wired connections with Ethernet-enabled devices.

Because there are also two built-in USB 2.0 ports, you can connect USB 2.0-enabled peripherals such as scanners, printers, and external hard drives. If you do connect any of these, you can access them wirelessly within your LAN network. You can also use them with the router's built-in server functions. The router can serve as a Printer server, FTP server, UPnP media server, or a 24/7 BitTorrent downloader. Whether you use the router as a server or not, you can utilize the EZQoS function to prioritize which computer programs or applications should receive the most bandwidth. In turn, these prioritized programs will run more smoothly because they'll receive the bandwidth they need.

For security, you can quickly setup WiFi Protected Access with the one-touch WPS button. However, for more advanced options, you have a variety of encryption methods, such as 64/128-bit WEP, WPA, WPA2, TKIP, AES, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, and Radius with 802.1x. You also have NAT and SPI firewall options as well as Port, IP Packet, URL keyword, and MAC address filtering.

Base Station
Standards 802.11n, 802.11b, 802.11g
Network Protocol Automatic IP ,Static IP, PPPoE(MPPE supported), PPTP, L2TP
Data Rate 802.11n Draft: up to 300 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
Frequency Range 2.4 GHz to 2.5 GHz
Channel Support Not specified by the manufacturer
Security Firewall: NAT and SPI (Stateful Packet Inspection), intrusion detection including logging
Logging: Dropped packet, security event, Syslog
Filtering: Port, IP packet, URL keyword, MAC address
Encryption Supports 64/128-bit WEP
WPA-PSK, WPA2-PSK
WPA-Enterprise, WPA2-Enterprise
Radius with 802.1x
Management EZQoS (Easy Quality of Service): Allow multiple network activities (FTP, Game, P2P) to work smoothly at the same time
DHCP Server: Supports up to 253 IP addresses; Changeable DHCP lease time, IP pool, domain name; Static mapped IP
Web-based administration: Support IE 5.5 or later, Firefox 2.0.0.1 or laterManaged from LAN and Internet; Password Setting
System Event Log
Firmware Upgrade: Web Interface, Bootloader
Save/Restore Configuration File
Antenna 3x  External antenna
Operation Distance Not specified by the manufacturer
Transmitted Power n mode: 15.8 to 19.5 dBm
g mode: 15.5 to 16.5 dBm
b mode: 15.8 to 19.5 dBm
Power Over Ethernet Not specified by the manufacturer
Ports 1 x   WAN RJ-45 10/100/1000 Base-T
4 x   LAN RJ-45 10/100/1000 Base-T
2 x USB 2.0 Ports
Support Ethernet and 802.3 with maximum bit rate of 10/100/1000 Mbps and auto cross-over function(MDI-X)
General
System Requirements Ethernet RJ-45 port 10Base-T/100Base-TX/1000Base-TX
One IEEE 802.11b/g/n device with wireless capability
Installed TCP/IP and Internet Browser
Compatible with Windows operating systems
Power Requirements AC input: 100V to 240V (50 to 60HZ)
DC output: 12V with max. 1.25A current
Dimensions (WxDxH) 8.50 x 6.37 x 1.59" / 21.6 x 16.19 x 4.05 cm
Weight 16.57 oz / 470 g
