Product Description

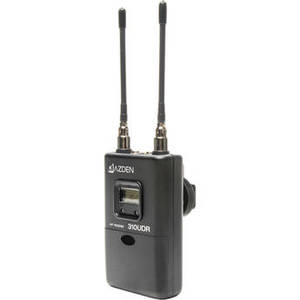

The Azden 310UDR UHF On-Camera Receiver is intended for use with 310 series transmitters and features 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display. Also included are main and headphone monitor outputs, and a removable shoe-mount adapter. The 310UDR operates on standard AA alkaline batteries (not included).
| # Of Channels | 188 |
| RF Carrier Frequency Range | UHF 188 Freq. (566.125-589.875 MHz) |
| Approx. Working Range | 200 - 300' |
| Overall Frequency Response | 50 to 15kHz |
| Signal-to-Noise Ratio | > 84dB (100% Deviation) |
| Type of Outputs | MIC Level - Balanced 1/8" (3.5mm) Mini-Jack -28 dBm (100% Deviation - Mic Level) |
| Headphone Monitoring | Yes 1/8" (3.5mm) Mini-Jack |
| Battery Type/Approx. Life | 2x "AA" Alkaline (2 x 1.5V) - 5-6 hours runtime 2x "AA" rechargeable Ni-MH (2 x 1.2V) |
| Display | LCD Digital |
| Mounting Options | Attached/Removable Shoe-Mount |
| Antenna Type | 2x Pivoting Diversity High-Gain Antenna |
| Dimensions (WxHxD) | 2.48 x 3.86 x 1.12" (63 x 98 x 28.5mm) |
| Weight | 6.7oz (190g) w/batteries |
