Product Description
The ECMR/52GTR Wireless Microphone System (D) from Galaxy Audio includes a 200' (61 m) range, which provides a lot of wiggle room for anyone putting on a performance. The ECMR has 16 selectable channels, diversity antennas, which are mounted to the front of the rugged plastic casing and allows for an IR sync. The MBP52 bodypack transmitter has a 0/-10/mic selector switch.

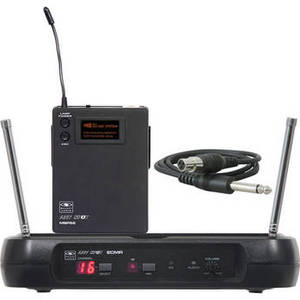

The system includes the ECMR (receiver), MBP52 (bodypack transmitter), AS-GTR (guitar cable), power supply and 1/4-1/4" output cable. Everything you need for a flexible wireless microphone system.
| System | Channels: 16 Frequency range: Code D 584-607MHz Transmitter output level: 10dBm Band: UHF Operating range: Under typical conditions 150' (50m) Note: Actual range depends on RF signal absorption, reflection and interference Audio frequency response: +/-3dB 70Hz-16KHz Total harmonic distortion: +/-30KHz deviation 1KHz tone <1% Dynamic range: >90dB A-weighted Operating temperature: Range 14-122ºF (-10-50 Cº) |
| Receiver | Audio output level: +/-30kHz deviation, 1KHz tone) XLR connector (into 600 ohms load) -12dBV 1/4" connector (into 3 kohms load) -18dBV |
| Impedance | XLR connector: 200 ohms 1/4" connector: 1 kohms |
| Outputs | XLR output: Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio Pin 3: No audio |
| Sensitivity | -93dBm for 30dB |
| Image Rejection | < 90dB |
| Power Requirements | 13.5 VDC at 300mA, supplied by external power |
| Dimensions (HxWxD) | 1.8 x 9.3 x .8" (44.5 x 235 x 121mm) |
| Weight | 0.9 lb. (0.4kg) |
| Transmitter | Bodypack |
| Maximum Audio Input Level Analog | 0-10dBV |
| Gain | Mic/0/-10dB |
| Impedance | 5 kohms |
| Power Requirements | 2 x AA size alkaline or rechargeable batteries |
| Battery Life | About 8 hours |
| Dimensions (H x W x D) | 3.3 x 2.6 x 1" (85 x 65 x 24mm) |
| Weight | 3 oz. (85 g) |
| Cable | Guitar 1/4" cable (AS-GTR): Guitar/instrument cable, TA3F connector, works with all Galaxy bodypack transmitters. Use with any guitar or bass guitar. 1/4" to mini XLR connector |
