Product Description

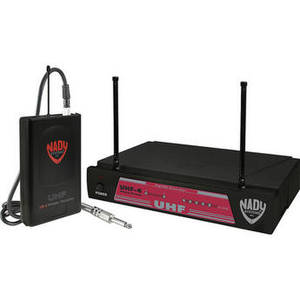

The UHF-4 UHF Wireless Diversity Guitar System by Nady brings you a complete wireless solution for guitar. The system is straightforward and easy to operate with the UHF-4 receiver and UB-4 Bodypack transmitter. These two are a match made in heaven. Now you can play rhythm guitar or shred a killer lead without being restricted by a long, cumbersome cable. The UHF (Ultra-High Frequency) range avoids crowded VHF bandwidth and features DigiTRU diversity technology offering low noise, maximum range and dropout protection for long-lasting and reliable reception.
| System | |
| Type of System | Bodypack transmitter |
| RF Carrier Frequency Range | UHF, choice of single frequencies within separate bands 902-928 and 944-952 MHz |
| Approx. Working Range | Up to 250 ft. typical (depending on site conditions) Up to500+ feet optimum line-of-sight |
| Overall Frequency Response | 30Hz - 18KHz, +/- 3dB |
| Total Harmonic Distortion (THD) | < 0.6% |
| Frequency Stability | +/- 0.005%, crystal controlled |
| Modulation | FM (F3E), +/-20KHz normal |
| Receiver | |
| Type of Outputs | DC in, 1/4"(6.3 mm) unbalanced phone jack (360 mV/no load)XLR balanced output (+/-24 mV/600 Ohm load) |
| Power Requirements | DC 15V @ 300 mA, AC/DC adapter included |
| Display | Power ON, Diversity A/B, Audio LED Bars + Peak |
| Antenna Type | 3.5" (9.0cm), dual telescopic |
| Dimensions | 1.75 x 7.5 x 8.1" (4.5 x 19 x 20.6cm) |
| Weight | 0.9 lbs (0.41 kg) |
| Transmitter | |
| Type of Transmitter | Nady UH-4 Bodypack |
| Inputs | 3.5mm locking mini-jack switchable inputs: instrument, headworn mic or lavalier mic |
| Battery Type/Approx. Life | 9V Alkaline 10 Hours |
| Controls | Power, Standby, Off, Instrument/Headworn Mic/Lav Mic, Input Level |
| LED Indicator | Single color (red), Unit "ON" (single flash red), Low BatteryAlert (steady red) |
| RF Power Output | 50 mW nominal (maximum allowed by FCC) |
| Harmonic & Spurious Emissions | < -50 dB |
| Dimensions | 4.25 x 2.5 x 1.0" (10.8 x 6.4 x 2.5 cm) |
| Weight | 3.1 oz (88 g) without battery |
