Product Description

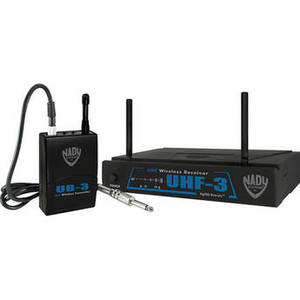

The UHF-3 UHF Wireless Diversity Guitar System by Nady brings you a complete wireless solution for guitar. The system is straightforward and easy to operate with the UHF-3 receiver and UB-3 Bodypack transmitter. These two are a match made in heaven. Now you can play rhythm guitar or shred a killer lead without being restricted by a long, cumbersome cable.The UHF (Ultra-High Frequency) range avoids crowded VHF bandwidth and features DigiTRU diversity technology offering low noise, maximum range and dropout protection for long-lasting and reliable reception.
| System | |
| Type of System | Bodypack UHF |
| RF Carrier Frequency Range | UHF, choice of single frequencies from 470-500MHz |
| Approx. Working Range | Up to 250 ft. typical (depending on site conditions) Up to500+ feet optimum line-of-sight |
| Overall Frequency Response | 30Hz - 18KHz +/- 3dB |
| Total Harmonic Distortion (THD) | < 0.6% |
| Frequency Stability | +/- 0.005% crystal controlled |
| Modulation | FM (F3E) +/-20KHz normal |
| Receiver | |
| Type of Outputs | DC in 1/4"(6.3 mm) unbalanced phone jack (360 mV/no load) XLR balanced output (+/-24 mV/600 Ohm load) |
| Power Requirements | DC 18V @ 250 mA, AC/DC adapter included |
| Display | Power ON, Diversity A/B, Audio Peak |
| Antenna Type | 11.2" (28.5 cm), dual telescopic |
| Dimensions | 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7cm) |
| Weight | 1.6 lbs (0.73 kg) |
| Transmitter | |
| Type of Transmitter | Nady UB-3 Bodypack |
| Battery Type/Approx. Life | 2 x AAA Alkaline 4 to 5 Hours |
| Mute Switch | POWER/MUTE ON/OFF, INSTRUMENT/ HEADWORN MIC/LAV MIC, INPUT LEVEL |
| LED Indicator | Bicolor, Unit "ON" (green), Low BatteryAlert (orange) |
| Dimensions | 3.25 x 2.18 x 1" (8.25 x 5.53 x 2.54 cm) |
| Weight | 2.25 oz (63.78 g) without battery |
