Dual Wireless Instrument System (A / 516 - 558 MHz)
Product Description

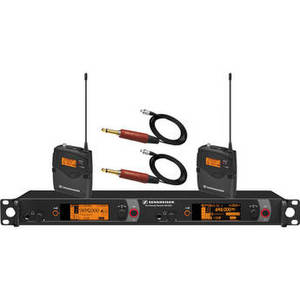

The Dual Wireless Instrument System (A / 516 - 558 MHz) by Sennheiser features the EM 2050 Dual Wireless Receiver, two SK 2000-XP bodypack transmitters and two CL14 1/4" instrument cables allowing you to connect line instruments such as electric guitars, violins and more. The system yields up to 3000 UHF frequencies and 20 fixed frequency bands with up to 64 compatible presets.An integrated active splitter provides up to 16 channels without using external splitters and True Diversity technology minimizes RF noise and drop-out while increasing range and clarity. Ethernet allows the system to be networked with a PC and remotely controlled with Sennheiser's WSM software. Additional features include an integrated EQ and guitar tuner, channel scanning, infrared syncing between the transmitter and receiver, user-friendly back-lit LCD interface, adjustable headphone output and more.
| Receiver | |
| Frequency | 516 - 558 MHz |
| Carrier Frequency | Max. 3,000 |
| Presets | 64 |
| Bandwidth | Max. 75MHz |
| Squelch | off, 5 - 25 dBμV can be set in 2dB steps |
| Intermodulation Distortion | ≥ 75 dB |
| Antenna Connector | 2 BNC (50Ω) |
| Gain | 0 dB ±0.5 dB based on antenna inputs |
| Operating Temperature | -10 °C - + 55 °C |
| Deviation | +/- 48kHz (Peak) |
| Compander | HDX |
| Signal-to-Noise Ratio | > 90 dB(A) |
| THD | < 0.9% |
| Frequency Response | 25Hz to 15kHz |
| Connector | XLR-3 + 1/4" Phone (6.3mm) jack x4 |
| Power Supply | 100 to 240 VAC, 50/60Hz |
| Consumption | 0.2A |
| Dimensions | 17.16 x 8.46 x 1.69" (436 x 215 x 43mm) |
| Weight | 6.39 lb (2.9 kg) |
| SK 2000-XP | |
| Type | SK 2000-XP Bodypack |
| Modulation | FM |
| Frequency | 516 - 558 MHz |
| Carrier Frequency | 3000 max. |
| Presets | 64 |
| Bandwidth | 75 MHz max. |
| RF Output Power | Selectable: 10, 30, 50, or 100 mW |
| Deviation | Nominal: +/- 24kHz Peak: +/- 48kHz |
| Compander | HDX |
| Frequency Response | Line: 25 - 18,000 Hz Mic: 80 - 18,000 Hz |
| THD | < 0.9% |
| Signal-to-Noise Ratio | > 120 dB(A) (@ 1 mV, peak deviation) |
| Compliant Standards | CE FCC IC |
| Audio Input | Audio input connector: Sennheiser (3-pin) socket |
| Power | 2 x 1.5 V (AA) Operating time (transmitter): typ. 8 hours Max. input voltage: 3 Veff (mic + line) |
| Input Impedance | Mic: 40 kohm Line: 1 Mohm |
| Dimensions | 3.22 x 2.51 x 0.94" (82 x 64 x 24mm) |
| Weight | 5.64oz (160 g) |
