Product Description

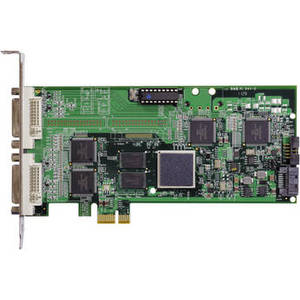

The NUUO SCB7016S Hardware Capture Card is a PC-based surveillance recording system designed to manage the recording of 16 analog IP cameras. It can record videos at resolutions up to 704 x 480 (NTSC) and 704 x 576 (PAL) in D1 and CIF. H.264 hardware compression enables this card to record quality videos while maximizing storage space. The hardware watchdog function automatically triggers a system reset to bring the system back to normal in event of a fault or freeze.
| Video Input | 16 cameras |
| Audio Input | 16 channels |
| Maximum Cards Supported | 4 |
| Maximum Analog Input per System | 64 |
| Display Rate | 480/400 fps |
| Recording Rate | D1: 480/400 fps CIF: 480/400 fps |
| Video Resolution | NTSC : 704 x 480, 352 x 240, 176 x 120 PAL : 704 x 576, 352 x 288, 176 x 144 |
| Compression Format | Hardware compression H.264 |
| Interface | PCI-Ex1 |
| Maximum I/O Card | 4 |
| Available I/O Card | SCB-C24/C26/C28, SCB-S-IO |
| Hardware Watchdog | Yes |
| OS Supported | Windows XP (32-bit) / Windows 7 (32 and 64-bit) / Windows 2008 R2 (64-bit) |
| CPU | Intel Core 2 Duo E5300 |
| RAM | 2 GB Note: Above RAM amount is recommended based on one DVR card installation. For system with multiple DVR cards, stacked 1 GB RAM for systems under 16 channels, 3 GB RAM for system under 32 channels, and 4 GB RAM (64-bit OS) for system with 32 channels or above are recommended. |
| HDD | 250 GB |
| Motherboard | Intel P55, H55, X58, P45, P43 chip, MB vendor ASUS, Gigabyte, or MSI with Intel Chipset recommended |
| Display | ATI Radeon 4350, nVIDIA GeForce GF-9600 or above (ATI Driver V11.5 recommended, ATI Driver V10 not supported) |
| Dimensions | 7.4 x 4.7" (188 x 121 mm) |
