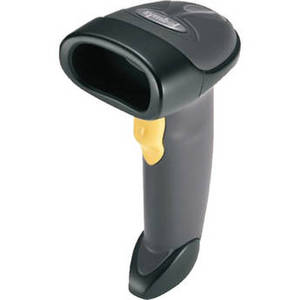

Symbol LS2208 Bar Code Reader with Stand and USB Cable (Black)
Product Description
The black Symbol LS2208 Bar Code Reader with Stand and USB Cable from Motorola features a lightweight, ergonomic design that is drop-resistant up to 5.0'. The barcode scanner features a wide working range - from contact to 17.0" (43 cm) for easy and convenient use. The reader's design takes the guesswork out of proper positioning and angling and thanks to its wide angle of coverage (side-to-side, up and down, and tilt), it's easy to learn how to use and will shorten the lines at the register or speed up any other job. Additionally, the reader can be used hands-free as well as trigger-operated with easy switching between the 2. The scanner is compatible with many barcode formats including UPC, EAN, Code 39, Code 128, Code 93, MSI, Code 11, and IATA codes.
| Scanner Type | Bi-directional |
| Scan Sensor | 650 nm visible laser diode |
| Frequency | 50 Hz |
| Scan Rate | 100 scans/second (typical) |
| Working Distance | 100% UPC (13 mil): 0.0 to 17.0" (0.0 to 43.18 cm) Code 39 (5.0 mil): 2.5 to 6.0" (6.0 to 15.25 cm) Code 39 (7.5 mil): 1.5 to 10.0" (3.81 to 25.4 cm) Code 39 (10 mil): 1.0 to 14.25" (2.54 to 14.25 cm) Code 39 (20 mil): 0.0 to 23.0" (0.0 to 58.5 cm) Code 39 (40 mil): 0.0 to 30.0" (0.0 to 76.2 cm) |
| Print Contrast | 20% minimum reflective difference |
| Tilt | 1.0 ± 30° |
| Pitch | 2.0 ± 65° |
| Skew | 3.0 ± 60° |
| Bar-Code Types | UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5 |
| Interfaces Supported | RS232, Keyboard Wedge, Wand, IBM 468X/9X, USB, Synapse and Undecoded |
| Ambient Light Immunity | Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight |
| Drop Resistance | Up to 5.0' (1.5 m) on concrete |
| Power Source | Host power or external power supply |
| Power Requirements | 5 V ±10%, 130 to 175 mA |
| Electrostatic Discharge | Conforms to 15 kV air discharge and 8.0 kV of contact discharge |
| Certifications | Electrical: UL1950, CSA C22.2 No. 950, EN60950/IEC950 EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori Laser Safety: CDRH Class II, IEC Class 2 Environmental: Compliant with RoHS directive 2002/95/EEC |
| Temperature / Humidity | Operating Temperature: 32 to 122 °F (0 to 50 °C) Storage Temperature: -40 to 158 °F (-40 to 70 °C) Humidity: 5 to 95% |
| Dimensions (WxDxH) | 2.5 x 3.34 x 6.0" (6.3 x 8.4 x 15.24 cm) |
| Weight | 5.15 oz (146 g) |
