Product Description

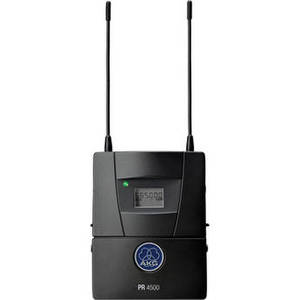

The AKG PR4500 ENG Pocket Receiver (Band 8) is a two AA battery powered wireless receiver that can be camera mounted and operates on band 8 between 570 to 600 MHz. It features an all-metal body and backlit display that shows a remaining battery life readout. The PR4500 is capable of broadcasting on up to 18 channels simultaneously, which allows for a maximum channel count in bandwidth that increases signal strength.
The lightweight, six-ounce body was designed for audio for video applications, and the included hot shoe adapter allows the PR4500 to be mounted to a variety of camcorders, DSLR cameras, or other A/V gear. It also features a 1/8" headphone output that allows you to monitor your audio input.
The lightweight, six-ounce body was designed for audio for video applications, and the included hot shoe adapter allows the PR4500 to be mounted to a variety of camcorders, DSLR cameras, or other A/V gear. It also features a 1/8" headphone output that allows you to monitor your audio input.
| Carrier Frequency Range | Band 8: 570 to 600 MHz |
| Switching Bandwidth | ≤ 31.5 MHz depending on band / 25 kHz |
| Audio Bandwidth | 35 Hz to 20 kHz |
| Total Harmonic Distortion | < 0.8% |
| Modulation | FM |
| Audio Formats | Mono |
| Expander | Compatible with WMS4500 |
| Headphone Output | 1 x 1/8" TRS jack Rated output level: 387 mV = 10 mW into 150 Ω Maximum power: 100 mW/channel Signal to noise ratio: 90 dB(A) |
| Line Output | 1x 2.5 mm TS jack Rated output level: 316 mV rms (-10 dBV) Output impedance: 600 Ω Total harmonic distortion: < 0.5% Signal to noise ratio: 100 dB(A) |
| De-Emphasis | 150 µs |
| Power Supply | 2x AA size dry batteries Optional BP4000 battery pack |
| Battery Life | 6 to 12 hours |
| Squelch Threshold | Selectable: 100, -94, -88, -82 dBm |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions (L x H x W) | 3 x 4 x 1" (70 x 90 x 25 mm) |
| Weight | 6 oz (165 g) |
