Perception SR 45 Wireless Receiver - Frequency U2 / 614 - 634 MHz
Product Description

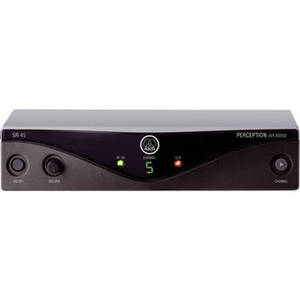

The AKG Perception SR 45 is a wireless receiver for use with the Perception line of wireless transmitters. To help you find an interference free channel to use, the SR 45 has 8 selectable UHF frequency bands choose from. The receiver also provides XLR and 1/4" jack outputs for connecting to your mixer and sound reinforcement system. Also, in order to suppress interference noise when the transmitter being used is turned off, the SR 45 uses an automatic squelch circuit that switches the receiver off if the received signal is too weak.
| Receiver | |
| Receiver Type | SR 45 Receiver |
| Carrier Frequency | Frequency U2 / 614 - 634 MHz |
| Modulation | FM |
| Audio Bandwidth | 40 Hz to 20 kHz |
| THD & Noise | typ. 0.8% |
| Signal-to-Noise Ratio | typ. 105 dB(A) |
| Squelch | -100 to -70 dBm Adjustable |
| Connections | Balanced XLR and unbalanced 1/4" (6.3 mm) jack: adjustable from mic to line level. Output level at rated deviation: 500 mV rms |
| Dimensions | 7.9 x 1.7 x 5.9" (200 x 44 x 150 mm) |
| Weight | 12.7 oz (360 g) |
