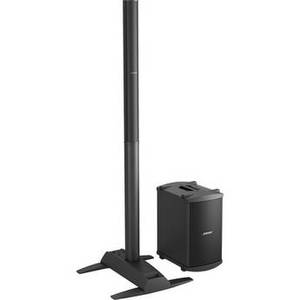

L1 Model 1S with B2 Bass Portable Line Array PA Speaker System
Product Description
Intended to be clean, compact and not cluttered with connections, the L1 Model 1S system is equipped with a single line-level analog input via 1/4" TRS jack. The analog line-level input has a trim control and a signal and clip LED. The input can be used to connect line-level instruments such as keyboards, or other line-level audio sources such as mp3 players for playing music, or mixers for connecting microphones. The optional T1 ToneMatch audio engine can be added if mic inputs are needed, or if more than one line input is needed.
The vertical configuration of the system's small, closely spaced drivers allows the L1 Model 1S system to deliver 180-degrees of horizontal sound coverage, yet at the same time only produce a small amount of vertical sound. This reduces unwanted reverberation and produces consistent tonal balance as sound spreads more evenly across the stage and into the audience. Also, the volume level drops off less over distance than with a conventional speaker.
The L1 Model 1S upper array, the B2 Bass Module and the power stand are designed to connect quickly and easily and do not require speaker stands. All components fit into the included carry bags for storage and transport.
The included B2 bass module is designed to deliver high-performance low-frequency output for applications that call for more powerful bass, such as bass guitar or DJ applications. Designed for flexibility, the module includes three different bass settings. The normal setting is ideal for bass guitar or when miking a kick drum. The high setting is designed for DJ and music playback applications. The low setting works well for acoustic guitar and vocals.
The L1 Model 1S system also includes a ToneMatch port for adding the optional T1 ToneMatch audio engine. The T1 ToneMatch adds mic inputs, additional line inputs, plus you can also use the ToneMatch effects engine to fine-tune your sound with Bose's proprietary tone-shaping tools.
| Type | Self-powered, two-way |
| Audio I/O | ToneMatch port: DC output/data input Ethercon/RJ45 connector for a T1 ToneMatch audio engine Analog Input: 1x line-level 1/4" TRS phone plugBass Module Out: 1x Neutrik NL4 (powers up to 2x B1 Bass module or 1x B2 Bass module) |
| Power | AC power rating: 100-120 V, 50/60 Hz, 500 W (USA/Canada); 220-240 V, 50/60 Hz, 500 W (Europe)Peak inrush current: 32 A @ 120 V, 60 Hz (USA/Canada); 61 A @ 230 V 50 Hz (Europe) |
| Speaker Impedance | L1 model 1S loudspeaker: 8Ω B2 bass module: 4Ω |
| Dimensions (HxWxD) | L1 Model 1S top array 43.5 x 3.5 x 4" (111 x 9 x 10.5 cm) L1 Model 1S bottom extension 39.63 x 4.15 x 4.13" (100.6 x 10.6 x 10.5 cm) L1 Model 1S power stand 5 x 10 x 27" (12.8 x 26.2 x 69.2 cm) B2 Bass Module: 23.4 x 13.31 x 18.9" (59.4 x 33.8 x 48 cm) |
| Weight | L1 Model 1S top array 16.3 lb (7.4 kg) L1 Model 1S bottom extension 8.5 lb (3.8 kg) L1 Model 1S power stand 23.7 lb (10.7 kg) B2 Bass Module: 45 lb (20.41 kg) |
