Product Description

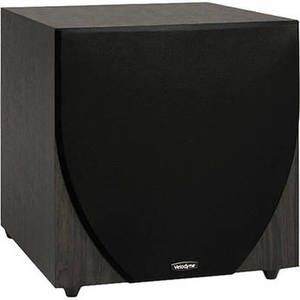

The black vinyl EQ-Max 12" Subwoofer from Velodyne delivers powerful low-end bass that integrates seamlessly with any home entertainment system with the one-touch Auto-EQ room bass correction. The DSP Distortion Limiting System assures maximum driver excursion and amplifier output, reproducing music and home theater flawlessly without sacrificing output or dynamics.
| Woofer | 12" (30.5 cm) forward firing 9.7" (24.6 cm) piston diameter |
| Amplifier | Class D: 450 W Dynamic / 225 W RMS Power |
| Cabinet | Extended Excursion Down-firing port |
| Frequency Response | Overall: 14.6 to 240 Hz (+/-3 dB): 25 to 120 Hz |
| Voice Coil | 2.0" (50.8 mm) 2-Layer copper |
| Cone Material | Reinforced fiber |
| Magnet Weight | 7.40 lb (kg) |
| High Pass Crossover | 80 Hz, 6 dB/octave |
| Low Pass Crossover | 40 to 135 Hz adjustable (12 dB octave, 24 dB ultimate) |
| Inputs | Gold plated line-level Nickel plated speaker level |
| Outputs | Gold plated line-level Nickel plated speaker level |
| Digital | Phase: 0, 90, 180, 270° |
| Dimensions (H x W x D) | Cabinet: 17.87 x 16.37 x 18.00" (45.40 x 41.60 x 45.70 cm) (includes feet and grille) |
| Weight | 40.0 lb (18.1 kg) |
