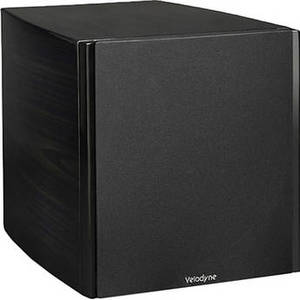

Digital Drive PLUS 10" Subwoofer (Black Gloss Ebony)
Product Description
The black gloss ebony Digital Drive PLUS 10" Subwoofer from Velodyne produces optimal bass, while whittling distortion down to less than 0.5 %. The subwoofer delivers a frequency response between 18.7 and 120 Hz at 3 dB with a 3000W dynamic amplifier, reproducing audio for applications from music to home theater, to gaming. The subwoofer fills medium-sized rooms (2000 to 3500 cu. ft.) with accurate bass, optimized by the 8-band Auto-EQ Plus feature, and remote-controlled presets ensure you get quality sound out of your new audio equipment.
| Driver | 10.0" (25.4 cm) forward firing |
| Amplifier | Class D: 3000 W Dynamic 1250 W RMS Power |
| Frequency Response | Overall: 10.5 to 300 Hz ± 3 dB: 18.7 to 120 Hz |
| THD | <0.5% (typical) |
| High Pass Crossover | 80 or 100 Hz at 6 dB/octave |
| Low Pass Crossover | 40-199 Hz (variable in 1 Hz increments) selectable slope Default: 80 Hz @ 24 dB/Octave |
| Phase | 0 to 180° (variable in 15° increments) |
| Polarity | Adjustable (±) |
| Structure | Magnet: 35.0 lb (15.8 kg) |
| Voice Coil | 6-layer, 2.5" (65.0 mm) |
| Cone Composition | Fiberglass Rohacell Laminate |
| Inputs | |
| LFE | Mono: Line level (RCA), Nominal Impedance 47 K, Balanced (XLR), Nominal Impedance 10 K |
| Input | (L&R): Line level (RCA & XLR) |
| Microphone | Balanced (Mini-XLR, cable included) |
| Level | Speaker (L&R): Bare wire, banana plugs, or spade lugs |
| Outputs | |
| Thru | (L&R): Line level (RCA & XLR) |
| Output | (L&R), High-Pass: Line level (RCA & XLR) |
| Dimensions (H x W x D) | 14.2 x 13.0 x 16.6" (36.0 x 33.0 x 42.0 cm) |
| Weight | 77.00 lb (34.92 kg) |
