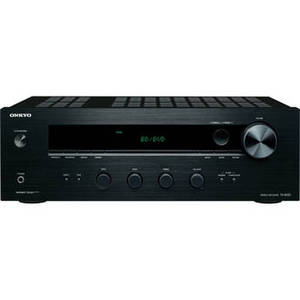

TX-8020 Stereo Receiver


From Onkyo | Model #: ONTX8020



See more in


TX-8020 Stereo Receiver

Product Description

The Onkyo TX-8020 Stereo Receiver features a full discrete amp configuration that provides 50W per channel. It supports Onkyo's WRAT (Wide Range Amp Technology) to ensure natural audio fidelity across a wide frequency range. The receiver also uses a massive EI transformer to drive the speakers accurately at all times - even under heavy loads. For connectivity, the TX-8020 features five analog audio inputs. There's a phono input, an analog audio output and a headphone jack as well. The receiver's other features include an FM/AM tuner with 40 station presets and a single-cable RI system that enables limited control of an RI-ready component.
Amplifier
Channels 2 (stereo)
Power Output 50 W + 50 W (stereo at 8 ohms, 20 Hz - 20 kHz, FTC)
Dynamic Power 160 W + 160 W (4 ohms)
Phono Overload Phono(MM): 80 dB (IHF-A)
Line: 100 dB (CD, IHF-A)
Tone Control Bass
Treble
Balance
Tuner Section
FM Frequency Range 87.5 - 107.9 MHz
AM Frequency Range 530 - 1710 kHz
FM/AM Preset Memory 40 stations
Connectivity
Inputs/Outputs Analog audio inputs x 5 (rear)
Phono input x 1 (rear)
Analog audio output x 1 (rear)
Remote Interactive (RI) jack x 1 (rear)
Sub-woofer pre-out x 1 (rear)
Headphone jack x 1 (front)
General
Power Supply AC 120 V (60 Hz)
Dimensions (WxHxD) 17.1 x 5.9 x 12.9" (435 x 150 x 328.5 mm)
Weight 16.1 lb (7.3 kg)
