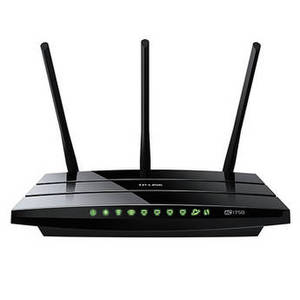

Archer C7 AC1750 Wireless Dual Band Gigabit Router


From TP-Link | Model #: TPARCHERC7



See more in


Archer C7 AC1750 Wireless Dual Band Gigabit Router

Product Description

This Archer C7 AC1750 Wireless Dual Band Gigabit Router from TP-Link features dual band functionality along with the enhanced 802.11ac Wi-Fi standard providing improved wireless data transfer speeds up to 1300 Mbps. Along with the 802.11ac Wi-Fi standard, you also benefit from 802.11a/b/g/n Wi-Fi standards allowing for seamless connectivity with a wide variety of Wi-Fi enabled devices. Additionally, the Archer C7 supports both 2.4 GHz and 5 GHz frequencies making it easy to allocate more data intensive tasks to the less congested 5 GHz frequency.

Along with enhanced wireless coverage, you also benefit from four full gigabit Ethernet ports located on the back of the router. Whether connecting to the router via Wi-Fi or the integrated gigabit Ethernet ports, you can rest assured your connection is secure as this router supports WEP, WPA / WPA2, and WPA / WPA2-PSK encryption standards. Along with enhanced encryption standards, this router also supports a variety of access control methods including parental controls, local management control, host list, access schedule, and rule management giving you complete administrative rights to your entire network.
Hardware Specification
Interface 4 x 10/100/1000 Mbps LAN ports
1 x 10/100/1000 Mbps WAN port
2 x USB 2.0 ports
Button WPS / reset button
Wireless on / off switch
Power on / off button
External Power Supply 12 VDC / 2.5 A
Antenna Type Three 5 GHz 5 dBi detachable antennas (RP-SMA)
Three 2.4 GHz internal antennas
Wireless Specifications
Wireless Standards IEEE 802.11 ac/n/a @ 5 GHz
IEEE 802.11 b/g/n @ 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 1300 Mbps
2.4 GHz: Up to 450 Mbps
EIRP <20 dBm (EIRP)
Reception Sensitivity 5 GHz
11a 6 Mbps: -96 dBm
11a 54 Mbps: -79 dBm
11ac HT20: -71 dBm
11ac HT40: -66 dBm
11ac HT80: -63 dBm
2.4 GHz
11g 54M: -77 dBm
11n HT20: -74 dBm
11n HT40: -72 dBm
Wireless Functions Enable / disable wireless radio
WDS bridge
WMM
Wireless statistics
Wireless Security 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Software Specification
WAN Type Dynamic IP / static IP / PPPoE / PPTP(dual access) / L2TP(dual access) / BigPond
DHCP Server, client, DHCP client list, address reservation
Quality of Service (QoS) WMM, bandwidth control
Port Forwarding Virtual server, port triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec
Access Control Parental control, local management control, host list, access schedule, rule management
Firewall Security DoS, SPI firewall
IP address filter / MAC address filter / domain filter
IP and MAC address binding
Protocols Supports IPv4 and IPv6
USB Sharing Support Samba (storage) / FTP server / media server / printer server
Management Access control
Local management
Remote management
Guest Network 1 x 2.4 GHz guest network
1 x 5 GHz guest network
Other Specifications
Power 100-240 VAC
Certification CE, FCC, RoHS
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
Dimensions & Weight
Dimensions (WxDxH) 9.6 x 6.4 x 1.3" / 243.0 x 160.6 x 32.5 mm
Weight Not specified by manufacturer
