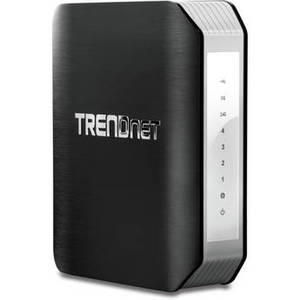

TEW-818DRU AC1900 Dual Band Wireless Router


From TRENDnet | Model #: TRTEW818DRU



See more in


TEW-818DRU AC1900 Dual Band Wireless Router

Product Description

The AC1900 Dual Band Wireless Router from TRENDnet features dual band functionality allowing you to utilize both the 2.4 GHz and 5 GHz frequencies. By allocating more data intensive tasks such as streaming of HD content, streaming music, and gaming to the less congested 5 GHz frequency, and leaving tasks such as web browsing and email to the 2.4 GHz frequency you benefit from increased overall data transfer speeds.

This wireless ac compatible router is capable of achieving max data transfer rates of up to 1300 Mbps with wireless ac compatible devices and 600 Mbps data rates when connecting via the wireless N networking standard.

Along with enhanced wireless connectivity, this router also features four Gigabit Ethernet ports along with one USB 2.0 port and one USB 3.0 port. The addition of USB connectivity to this router allows you to connect USB compatible storage devices directly to the router making it simple to share data throughout the network.

The TEW-818DRU Dual Band Wireless Router comes pre-encrypted eliminating arduous task of securing your wireless connections. Additionally, you can configure guest networks to ensure guests are only able to access pre-determined parts of the network or internet. You can also implement parental controls to control access to specific websites along with the ability to block specific types of content.
Standards • IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n (2.4 GHz up to 600 Mbps TurboQAM, 5 GHz up to 450 Mbps)
• IEEE 802.11ac (draft 2.0, up to 1.3 Gbps)
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
Hardware Interface • 4 x Gigabit LAN ports
• 1 x Gigabit WAN port
• 1 x USB 3.0 (storage FTP, Samba, printing)
• 1 x USB 2.0 (storage FTP, Samba, printing)
• WPS button
• LED indicators
Security • Wireless encryption up to WPA2
• Firewall: NAT, SPI
• Parental (Access) Controls: MAC, URL, IP filter
System Requirements Optional USB Printing Utility: Windows: 8.1, 8, 7, Vista, XP; Mac OS X: 10.9, 10.8, 10.7, 10.6, 10.5, 10.4
Network Features • QoS management
• IPv6 support
• WDS support
• Up to 2 additional SSID per band 1 guest network per band with option for Internet access only
• Dynamic DNS support for dyn.com and no-ip.com
• Samba/FTP server support
• Multi-Language Interface: English, French, Spanish, German, Russian
Antenna Gain • 2.4 GHz: 6 dBi (max.) internal
• 5 GHz: 6 dBi (max.) internal
Wireless Output Power • 802.11a: FCC: 22 dBm, ETSI: 18 dBm (max.)/ -68 dBm (typical) @ 54 Mbps
• 802.11b: FCC/ETSI: 19 dBm (max.)/ -84 dBm (typical) @ 11 Mbps
• 802.11g: FCC/ETSI: 18 dBm (max.)/-72 dBm (typical) @ 54 Mbps
• 802.11n: FCC/ETSI: 18 dBm (max.)/-68 dBm (typical) @ 600 Mbps 2.4 GHz
• 802.11n: FCC: 22 dBm, ETSI: 18 dBm (max.)/ -68 dBm (typical) @ 450 Mbps 5 GHz
• 802.11ac: FCC: 23 dBm, ETSI: 19 dBm (max.)/ -55 dBm (typical) @ 1.3 Gbps
Power • Input: 100-240 V AC, 50-60 Hz, 0.8 A
• Output: 12 V DC, 2 A
• Consumption: 22 Watts (max.)
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity Max. 90% non-condensing
Certifications CD, FCC
Dimensions 1.8 x 6.1 x 7.1" / 48 x 155 x 180 mm
Weight 14 oz / 395 g
