Product Description

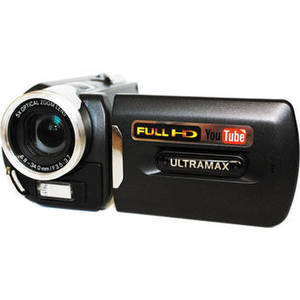

The UXDV-3HD-CAM 1080p Digital Video Camera is an HD camera that supports both NTSC and PAL television signals, and features a 5MP, 1/2.5" CMOS image sensor that delivers 1920 x 1080p HD video at up to 30 fps. It can switch modes at the touch of a button to capture still images at resolutions of 5MP or 2MP, or a higher 8, 12, or 16MP by interpolation. It has a 5x optical zoom lens with a 35mm- equivalent focal length range of 40.8-204mm and auto and manual focus selection. The camera records images to its 32MB internal memory or to SD/SDHC or MMC memory cards up to 32GB in capacity. It also has a 3.0" TFT LCD monitor with 270° rotation. A built-in flash aids in still shooting in low-light conditions. The camera also has image stabilization to reduce the effects of camera shake for clear, blur-free shots. The HDMI output and included cables enable you to view your HD videos on an HDTV. Additionally, the included lithium-ion battery provides approximately 1 hr of continuous recording time and is recharged by the supplied AC adapter. A USB cable is also provided. The camera fits into an Ultramax UXDV-3HD-HSE underwater housing.
| Camera | |
| Sensor | 1-Chip 1/2.5" CMOS |
| Sensor Resolution | 5 MP |
| Effective Pixels | Not Specified by Manufacturer |
| Optics | |
| Focal Length | 6.8 - 34mm |
| 35mm-Equivalent Focal Length | 40.8 - 204 |
| Maximum Aperture | f/3.5 - f/3.7 |
| Minimum Focusing Distance | 31.5" / 80.0 cm |
| Zoom | Optical: 5x Digital: 4x |
| Filter Size | 46 mm |
| Sensor | |
| Pixel Gross | |
| Focal Length | |
| 35mm-Equivalent Focal Length | |
| Maximum Aperture | |
| Minimum Focusing Distance | |
| Fixed Focus | |
| Angle of View | |
| Recording | |
| System | NTSC/PAL |
| Recording Media | MMC, SD/SDHC (32 GB Maximum) |
| Video Format | 1920 x 1080p at 30 fps (MP4) 1280 x 720p at 30 fps (MP4) 640 x 480p at 30 fps (MP4) 320 x 240p at 30 fps (MP4) |
| Aspect Ratio | 16:9 4:3 |
| Still Image Resolution | JPEG: 16 Megapixel, 4608 x 3456 (4:3) JPEG: 12 Megapixel, 4000 x 3000 (4:3) JPEG: 8 Megapixel, 3200 x 2400 (4:3) JPEG: 5 Megapixel, 2560 x 1920 (4:3) JPEG: 2 Megapixel, 1600 x 1200 (4:3) |
| Audio Format | WAV |
| Display | |
| Display Type | LCD |
| Screen Size | 3.0" |
| Rotation | Opening Angle: 90° Turning Angle: 270° |
| Photo ISO Range | |
| Video ISO Range | |
| Streaming ISO Range | |
| Features | |
| Image Stabilization | Digital |
| Scene Modes | Preset: YesCustom: Yes |
| IP Rating | |
| White Balance Modes | Auto Cloudy Fine Fluorescent Tungsten |
| Creative Effects | Yes |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
| Built-In Light/Flash | Light - No Flash - Yes |
| Tripod Mount | 1/4" - 20 |
| Input/Output Connectors | |
| Outputs | 1 x HDMI 1 x Composite Video |
| General | |
| Battery | Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1000 mAh Max Runtime: 2 Hours per Charge |
| Charging Method | AC Adapter |
| Operating Temperature | 32 to 113°F / 0 to 45°C Humidity: 65% |
| Dimensions (W x H x D) | 4.6 x 2.3 x 2.5" / 116.8 x 58.4 x 63.5 mm |
| Weight | 10.6 oz / 300.5 g |
