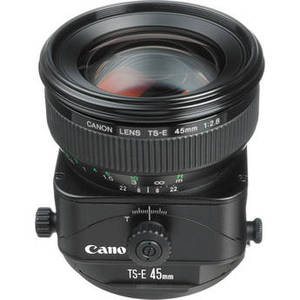

TS-E 45mm f/2.8 Tilt-Shift Lens


From Canon | Model #: CA4528TSE



See more in


TS-E 45mm f/2.8 Tilt-Shift Lens

Product Description

Mixing a normal field of view with perspective- and depth of field control, the TS-E 45mm f/2.8 from Canon is a tilt-shift lens well-suited to producing well-corrected imagery with a natural perspective. Up to +/- 8° of tilt is possible, for focus control, and +/- 11mm of shift, to adjust perspective and composition. The tilt-shift mechanism can be rotated +/- 90° for applying movements in any direction, and a tilt-locking mechanism can be used while shooting for greater stability. The lens also employs a floating optical system and rear focusing design to maintain image quality throughout the focusing range and a Super Spectra coating has been applied to individual element to reduce flare and ghosting for increased contrast and color accuracy.
Performance
Focal Length 45mm
Aperture Maximum: f/2.8
Minimum: f/22
Camera Mount Type Canon EF
Format Compatibility 35mm Film / Full-Frame Digital Sensor
Angle of View 51°
Tilt/Shift Tilt ± 8°
Shifts ± 11mm
Minimum Focus Distance 1.31' (40 cm)
Magnification 0.16x
Maximum Reproduction Ratio 1:6.2
Optical Design 10 Elements in 9 Groups
Diaphragm Blades 8, Rounded
Features
Autofocus No
Physical
Filter Thread Front: 72 mm
Dimensions (DxL) Approx. 3.19 x 3.55" (81 x 90.1 mm)
Weight 1.42 lb (645 g)
Warranty Length Limited 1-Year Warranty
