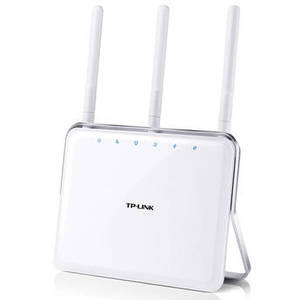

ARCHER C8 Dual Band WirelessAC1750 Gigabit Router


From TP-Link | Model #: TPARCHERC8



See more in


ARCHER C8 Dual Band WirelessAC1750 Gigabit Router

Product Description

Connect your Wi-Fi enabled devices to the Internet at speeds of up to 1750 Mbps with the ARCHER C8 Dual Band Wireless AC1750 Gigabit Router from TP-Link. This dual band Wi-Fi router operates on both the 2.4 GHz and 5 GHz frequencies allowing you to allocate more data intensive tasks to the less congested 5 GHz frequency. Along with enhanced wireless connectivity, this router also supports four Gigabit Ethernet ports providing a fast, hardwired connection to the router. You can also utilize the two USB ports to attach devices such as USB printers and hard drives making them accessible throughout the network or remotely via an FTP server.

This TP-Link router also supports guest network access making it possible to restrict Internet access to specific users. You can utilize parental controls to enact restricted access policies while IP-based bandwidth control allows you to allocate bandwidth throughout the network.
Hardware Specifications
Interface 4 x 10/100/1000 Mbps LAN ports
1 x 10/100/1000 Mbps WAN port
1 x USB 3.0 port + 1 USB 2.0 port
Button WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
External Power Supply 12 V / 3.3 A
Antenna 3 x dual band detachable antennas
Wireless Specifications
Wireless Standards IEEE 802.11ac/n/a 5 GHz
IEEE 802.11b/g/n 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 1300 Mbps
2.4 GHz: Up to 450 Mbps
Reception Sensitivity 5 GHz:
11a 6 Mbps: -96 dBm
11a 54 Mbps: -79 dBm
11ac HT20: -71 dBm
11ac HT40: -66 dBm
11ac HT80: -63 dBm
2.4 GHz
11g 54M: -77 dBm
11n HT20: -74 dBm
11n HT40: -72 dBm
Transmit Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
Software Specifications
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/BigPond
DHCP Server, Client, DHCP Client List, Address Reservation
Quality of Service (QoS) WMM, Bandwidth Control
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
VPN PPTP, L2TP, IPSec
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols Supports IPv4 and IPv6
USB Sharing Support Samba (Storage)/FTP Server/Media Server/Printer Server
Management Access Control
Local Management
Remote Management
Guest Network 1 x 2.4 GHz guest network
1 x 5 GHz guest network
Other Specifications
Certifications CE, FCC, RoHS
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, Mac OS, NetWare, UNIX or Linux
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
Dimensions & Weight
Dimensions 8.7 x 3.4 x 6.6" / 221.0 x 86.0 x 168.5 mm
Weight Not specified by manufacturer
