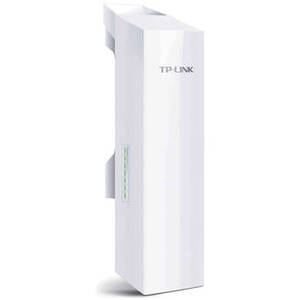

CPE210 2.4 GHz N-300 9 dBi Outdoor Customer-Premises Equipment
Product Description
Whether using this device as a point to multi-point link or as an access point, the CPE210 2.4 GHz N-300 9 dBi Outdoor Customer-Premises Equipment from TP-Link is capable of enhancing network performance and coverage. This CPE features a weatherproof enclosure complete with 15 KV ESD protection and 6,000 V lightning protection allowing it to withstand some of the harshest weather conditions.
The enclosure is composed of outdoor ASA stabilized plastic and carries the IPX5 waterproof certification. Underneath the sturdy shell you will find one Fast Ethernet Passive PoE input and one Fast Ethernet Passive PoE Passthrough port eliminating the need for an additional PoE adapter. You will also find one grounding terminal for added protection against lightning strikes.
Once installed, you can take advantage of IEEE 802.11b/g/n networking standards to connect nearly any Wi-Fi enabled device to the Internet. The CPE operates on the 2.4 GHz routing frequency supporting a maximum data transfer rate of up to 300 Mbps with a transmit power of up to 27 dBm. Configure the CPE to suit nearly any networking need with support for AP, client, bridge, repeater, AP router mode, and AP client (WISP client) operation modes.
The enclosure is composed of outdoor ASA stabilized plastic and carries the IPX5 waterproof certification. Underneath the sturdy shell you will find one Fast Ethernet Passive PoE input and one Fast Ethernet Passive PoE Passthrough port eliminating the need for an additional PoE adapter. You will also find one grounding terminal for added protection against lightning strikes.
Once installed, you can take advantage of IEEE 802.11b/g/n networking standards to connect nearly any Wi-Fi enabled device to the Internet. The CPE operates on the 2.4 GHz routing frequency supporting a maximum data transfer rate of up to 300 Mbps with a transmit power of up to 27 dBm. Configure the CPE to suit nearly any networking need with support for AP, client, bridge, repeater, AP router mode, and AP client (WISP client) operation modes.
| Hardware Specifications | |
| Processor | Qualcomm Atheros 560 MHz CPU, MIPS 74Kc |
| Memory | 64 MB DDR2 RAM, 8 MB flash |
| Interface | 1 x 10/100 Mbps Shielded Ethernet port (LAN0,Passive PoE in) 1 x 10/100 Mbps Shielded Ethernet port (LAN1, Passive PoE Passthrough) 1 x Grounding terminal 1 x Reset button |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5 pins; -7,8 pins) |
| Input Voltage Range | 16-27 V DC (24 V Passive PoE Adapter is provided) |
| Power Draw | 10.5 Watts max Note: When deployed using Passive PoE, the power drawn from the power sourcing equipment will be higher by some amount depending on the length of the interconnecting cable |
| Protection | 15 KV ESD protection 6000 V Lightning protection |
| Enclosure | Outdoor ASA stabilized plastic material IPX5 waterproof certification |
| Wireless Specifications | |
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA mode (with Pharos MAXtream enabled) |
| Operating Frequency | 2.4~2.483 GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used (Dynamic Frequency Selection is supported) |
| Wireless Speed | Up to 300 Mbps (40 MHz, Dynamic) Up to 144.4 Mbps (20 MHz, Dynamic) Up to 72.2 Mbps (10 MHz, Dynamic) Up to 36.1 Mbps (5 MHz, Dynamic) |
| Max Transmit Power | 27 dBm / 500 mw (Adjustable power by 1 dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used |
| Operation Modes | AP / Client / Bridge / Repeater / AP Router Mode /AP Client Router (WISP Client) Mode |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption |
| RF Specifications | 802.11b Data Rate / Tx Power / Rx Sensitivity 1 Mbps | 27 | -96 2 Mbps | 27 | -96 5.5 Mbps | 27 | -96 11 Mbps | 27 | -95 802.11g Data Rate / Tx Power / Rx Sensitivity 6-24 Mbps | 27 | -88 36 Mbps | 27 | -84 48 Mbps | 27 | -80 54 Mbps | 27 | -79 802.11n Data Rate / Tx Power / Rx Sensitivity MCS0 | 27 | -96 MCS1 | 27 | -93 MCS2 | 27 | -91 MCS3 |27 | -87 MCS4 | 27 | -84 MCS5 | 27 | -80 MCS6 | 27 | -78 MCS7 | 26 | -76 MCS8 | 27 | -96 MCS9 | 27 | -93 MCS10 | 27 | -91 MCS11 | 27 | -87 MCS12 | 27 | -84 MCS13 | 27 | -80 MCS14 | 27 | -78 MCS15 | 27 | -76 |
| Antenna | |
| Gain | 9 dBi |
| Beamwidth | 65° (H-Plane) / 35° (E-Plane) |
| VSWR | 1.8 max. |
| Polarization | Horizontal / vertical |
| Cross-pol Isolation | 24 dB min. |
| Other Specifications | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux Note: We recommend you to use one of following Web browsers for better experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Operating Temperature | -22 to 158°F / -30 to 70°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 95% non-condensing |
| Dimensions & Weight | |
| Dimensions | 8.8 x 3.1 x 2.4" / 224 x 79 x 60 mm |
| Weight | Not specified by manufacturer |
