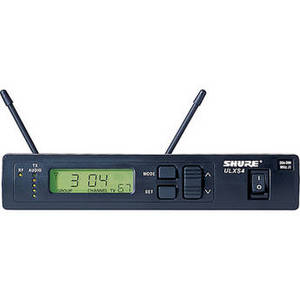

ULXS4 Standard Wireless Receiver with PS40 (J1 / 554 to 590 MHz)
Product Description
The Shure ULXS4 Standard receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile receiver offers a direct path to full, clear audio signals, unencumbered and unattached.
| Type of Receiver | ULXS4 Rack/Table-Top Mount UHF Standard Diversity Receiver |
| RF Carrier Frequency Range | J1 / 554 to 590 MHz |
| Frequency Response | 25 Hz - 15 kHz, (±2 dB) |
| Signal-to-Noise Ratio | Greater Than 90 dB |
| Approx. Working Range | 300' (100 m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference |
| Type of Outputs | Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd (Both Outputs Feature: Voltage, Current and Phantom Power Protection) |
| Headphone Monitoring | No |
| Power Requirements | 14 - 18 VDC (negative ground), 550 mA External Power Supply - PS40, Included, Now with Locking DC Connector! |
| Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries |
| # Of Channels | Over 1400 User Selectable Frequencies |
| Display | Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. |
| Mounting Options | Rack/Table-Top Mount 1/2 Rack Space |
| Antenna Type | Remotable 1/2 Wave, Rear Mounted |
| Dimensions | 1.72 x 8.56 x 6.52" (43 x 214 x 163 mm) HxWxD |
| Weight | 2.31 lb (1049 g) |
