Product Description

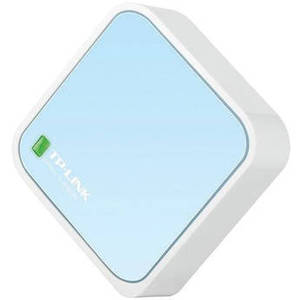

The TL-WR802N Wireless-N300 Nano Router from TP-Link is designed for use with tablets, smart phones, handheld game consoles and other portable electronic wireless devices. This router, which can be powered by an external power adapter or USB connection to a computer, can conveniently connect to the Internet and share the connection around an average sized room at 300 Mbps. The device's tiny size makes it ideal for use on the road and is powerful enough to satisfy almost any basic wireless application requirement.
The TL-WR802N supports Router (default), Repeater, Client, AP and WISP modes to enable various wireless applications to give users a more dynamic and comprehensive wireless networking experience. Additionally, WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
The TL-WR802N supports Router (default), Repeater, Client, AP and WISP modes to enable various wireless applications to give users a more dynamic and comprehensive wireless networking experience. Additionally, WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
| Hardware | |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Antenna Type | On-board |
| Interface | 1 x 10/100Mbps WAN/LAN Port 1 x Micro USB Port 1 x Reset Button |
| Wireless | |
| Frequency | 2.4-2.4835 GHz |
| Signal Rate | 11n: Up to 300 Mbps (dynamic) 11g: Up to 54 Mbps (dynamic) 11b: Up to 11 Mbps (dynamic) |
| Wireless Modes | Router Mode, Repeater Mode, Client Mode, AP Mode, WISP Router Mode |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Reception Sensitivity | 270M: -65 dBm @10% PER 130M: -70 dBm @10% PER 108M: -82 dBm @10% PER 54M: -73 dBm @10% PER 11M: -82 dBm @8% PER 6M: -86 dBm @10% PER 1M: -90 dBm @8% PER |
| Transmit Power | CE: <20 dBm (2.4 GHz) FCC: <30 dBm |
| Software | |
| Quality of Service (QoS) | WMM, Bandwidth Control |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| Access Control | Local Management Control, Host List, Access Schedule, Rule Management |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Firewall Security | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Management | Access Control Local Management Remote Management |
| Other Specifications | |
| Certifications | CE, FCC, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8.1/8/7, Mac OS, NetWare, UNIX or Linux |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Temperature | 5 to 90% non-condensing |
| Dimensions & Weight | |
| Dimensions | 2.2 x 2.2 x 0.7" / 57 x 57 x 18 mm |
| Weight | Not specified by manufacturer |
