Product Description

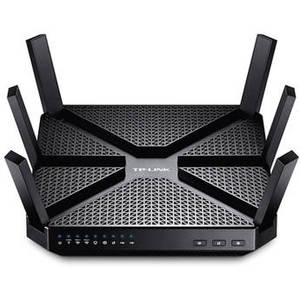

With integrated tri-band technology, the ARCHER C3200 AC3200 Wireless Tri-Band Gigabit Router from TP-Link supports one 2.4 GHz band and two 5 GHz bands. With two 5 GHz bands more devices can take advantage of enhanced 1300 Mbps data transfer rates for enhanced streaming, downloading, and more. The Archer C3200 also implements beamforming technology in which the router directs the Wi-Fi signal to the end user's device for a stronger, more reliable connection. In addition to dual-band functionality, the Archer C3200 features 802.11a/b/g/n/ac standards compatibility allowing you to connect nearly any Wi-Fi enabled device to your network.
The Archer C3200 Router comes equipped with six antennas: three dual band and three single band. On the back of the router you can connect up to four Ethernet enabled devices to any of the four Gigabit Ethernet ports for a fast, reliable wired connection. Along with Gigabit Ethernet connectivity, you can connect USB compatible peripherals such as hard drives and printers to either the USB 3.0 or USB 2.0 ports.
The Archer C3200 Router comes equipped with six antennas: three dual band and three single band. On the back of the router you can connect up to four Ethernet enabled devices to any of the four Gigabit Ethernet ports for a fast, reliable wired connection. Along with Gigabit Ethernet connectivity, you can connect USB compatible peripherals such as hard drives and printers to either the USB 3.0 or USB 2.0 ports.
| Hardware | |
| Interfaces | 4 x 10/100/1000 Mbps LAN ports 1 x 10/100/1000 Mbps WAN port 1 x USB 3.0 port 1 x USB 2.0 port |
| Button | Wireless On/Off button Power On/off button LED On/off button WPS button Reset button |
| Antenna | 3 x dual band fixed antennas 3 x single band fixed antennas |
| External Power Supply | 12 V / 5 A |
| Wireless Specifications | |
| Wireless Standards | IEEE 802.11ac/n/a 5 GHz IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz Band 1 / Band 4 |
| Signal Rate | 5 GHz Band 1: Up to 1300 Mbps 5 GHz Band 2: Up to 1300 Mbps 2.4 GHz: Up to 600 Mbps |
| Reception Sensitivity | 5 GHz: 11a 6 Mbps: -94 dBm 11a 54 Mbps: -76 dBm 11ac HT20: -68 dBm 11ac HT40: -64 dBm 11ac HT80: -60 dBm 2.4 GHz 11g 54M: -77 dBm 11n HT20: -73 dBm 11n HT40: -71 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm |
| Guest Network | 1 x 2.4 GHz guest network 2 x 5 GHz guest network |
| Software Specifications | |
| Quality of Service (QoS) | WMM, bandwidth control |
| WAN Type | Dynamic IP / Static IP / PPPoE / PPTP (Dual Access) / L2TP (Dual Access) |
| Management | Access Control Local Management Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Protocols | Supports IPv4 and IPv6 |
| USB Sharing | Support Samba (Storage) / FTP Server / Media Server / Printer Server |
| Other Specifications | |
| Certifications | CE, FCC, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
| Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -40 to 158°F / -40 to 70°C Operating Humidity: 10 to 90% non-condensing Storage Humidity: 5 to 95% non-condensing |
| Dimensions & Weight | |
| Dimensions | 7.9 x 7.9 x 1.5" / 200 x 200 x 39 mm |
| Weight | Not specified by manufacturer |
