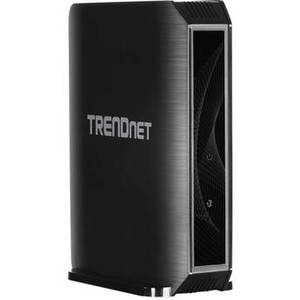

TEW-824DRU Dual-Band Wireless-AC1750 Gigabit Router with StreamBoost
Product Description
StreamBoost technology found in the TEW-824DRU Dual-Band Wireless-AC1750 Gigabit Router with StreamBoost from TRENDnet is designed to provide an optimized network experience through reduced latency, advanced network traffic management, and traffic mapping. With advanced traffic management and mapping you can determine which applications and devices are prioritized on the network. Along with enhanced traffic management capabilities, the TEW-824DRU features dual-band connectivity allowing making it easy to connect to either the 2.4 GHz or 5 GHz frequencies. Additionally, this router supports 802.11a/b/g/n/ac networking standards with a total Wi-Fi data throughput of up to 1750 Mbps supporting applications like streaming HD content, downloading large files, and more. If a wired Ethernet connection is what you need, the TEW-824DRU comes equipped with four Gigabit Ethernet ports providing a reliable wired connection. Above the Gigabit Ethernet ports you will find a single USB port supporting USB compatible storage devices. Simply connect a USB hard drive and share your files with users throughout the network.
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (2.4 GHz 450 Mbps, 5 GHz up to 450 Mbps) IEEE 802.11ac (up to 1300 Mbps) |
| Hardware | 4 x Gigabit LAN ports 1 x Gigabit WAN port 1 x USB 2.0 (Storage FTP, Samba) Power switch WPS button Reset button LED indicators |
| Access Control | Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from internet ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough Parental (Access) Controls: MAC, URL, IP Filter |
| QoS (Quality of Service) | WMM StreamBoost Traffic Shaping |
| Internet Connection Types | Dynamic IP (DHCP) Static IP (Fixed) PPPoE (Dynamic IP/Static IP) PPTP (Dynamic IP/Static IP) L2TP(Dynamic IP/Static IP) Russia PPPoE (Dynamic IP/Static IP) Russia PPTP (Dynamic IP/Static IP) Russia L2TP (Dynamic IP/Static IP) IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4) |
| Management / Monitoring | Local/remote web based management Upgrade firmware Backup/restore configuration Internal logging Reboot Restore to factory defaults Ping test |
| Routing | Static Dynamic (RIP v1/2) |
| Frequency | 2.412 - 2.472 GHz 5.180 - 5.825 GHz |
| Modulation | 802.11b: CCK, DQPSK, DBPSK 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM |
| Media Access Protocol | CSMA/CA with ACK |
| Antenna Gain | 2.4 GHz: 3 x 2 dBi (max.) internal 5 GHz: 3 x 3 dBi (max.) internal |
| Wireless Output Power | 802.11a: 20 dBm (max.) @ 54 Mbps 802.11b: 23 dBm (max.) @ 11 Mbps 802.11g: 23 dBm (max.) @ 54 Mbps 802.11n (2.4 GHz): 22 dBm (max.) @ 450 Mbps 802.11n (5 GHz): 20 dBm (max.) @ 450 Mbps 802.11ac: 20 dBm (max.) @ 1300 Mbps |
| Receiving Sensitivity | 802.11a: -65 dBm (typical) @ 54 Mbps 802.11b: -83 dBm (typical) @ 11 Mbps 802.11g: -65 dBm (typical) @ 54 Mbps 802.11n (2.4 GHz): -61 dBm (typical) @ 450 Mbps 802.11n (5 GHz): -61 dBm (typical) @ 450 Mbps 802.11ac: -51 dBm (typical) @ 1300 Mbps |
| Wireless Channels | 2.4 GHz: FCC: 1-11; ETSI: 1-13 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140) |
| Power | Input: 100 - 240 VAC, 50 - 60 Hz, 0.8 A Output: 12 VDC, 2 A external power adapter Consumption: 18 Watts max. |
| Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C Operating Humidity: Max. 95% non-condensing |
| Certifications | CE, FCC |
| Dimensions | 2.8 x 6.0 x 7.5" / 72 x 151 x 191 mm |
| Weight | 14.4 oz / 408 g |
