Product Description
With built-in tri-band functionality, the RT-AC5300 Tri-Band Wireless AC5300 Gigabit Router from ASUS allows users to connect to one 2.4 GHz frequency and two separate 5 GHz frequencies. With two 5 GHz operating frequencies this router can support more users without sacrificing bandwidth or network performance. Along with tri-band connectivity, the RT-AC5300 supports the enhanced 802.11ac networking standard and offers a maximum wireless data throughput of up to 5334 Mbps. This enhanced Wi-Fi connectivity allows for low latency gaming, streaming of 4K multimedia content, downloading of large files, and much more. In addition to the 802.11ac networking standard, this router also supports 802.11a/b/g/n network standards making it easy to connect nearly any Wi-Fi enabled device to your network.

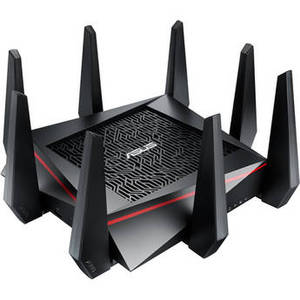

On the outside of the RT-AC5300 you will find eight adjustable antennas featuring AiRadar beamforming technology supporting a transmission distance of up to 5,400 square feet (500 square meters). With beamforming technology the wireless signal is beamed directly to the connected device for a more focused, more reliable connection. This ASUS router not only beams the signals to your devices, it has the ability to support more devices without slowing down thanks to MU-MIMO technology.
If a wired connection is what you desire, you can connect to any of the four Gigabit Ethernet ports. Dedicated link aggregation support provides enhanced data transfer speeds when a super fast Internet connection is required. Inside the RT-5300 you will find 128MB flash memory and 512MB of RAM to ensure the router operates smoothly when being pushed to the max.
On the outside of the RT-AC5300 you will find eight adjustable antennas featuring AiRadar beamforming technology supporting a transmission distance of up to 5,400 square feet (500 square meters). With beamforming technology the wireless signal is beamed directly to the connected device for a more focused, more reliable connection. This ASUS router not only beams the signals to your devices, it has the ability to support more devices without slowing down thanks to MU-MIMO technology.
If a wired connection is what you desire, you can connect to any of the four Gigabit Ethernet ports. Dedicated link aggregation support provides enhanced data transfer speeds when a super fast Internet connection is required. Inside the RT-5300 you will find 128MB flash memory and 512MB of RAM to ensure the router operates smoothly when being pushed to the max.
Network Standards | IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IPv4 IPv6 |
Performance | AC5300 Ultimate AC Performance: 1000+2167+2167 Mbps |
Data Rate | 802.11a: 6,9,12,18,24,36,48,54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6,9,12,18,24,36,48,54 Mbps 802.11n: up to 600 Mbps 802.11ac: up to 1734 Mbps 1024QAM (2.4 GHz): up to 1000 Mbps 1024QAM (5 GHz): up to 2167 Mbps |
Antenna | 8 x external antennas |
Transmit / Receive | MIMO technology 2.4 GHz: 4x4 5 GHz 1: 4x4 5 GHz 2: 4x4 |
Memory | 128 MB Flash 512 MB RAM |
Wi-Fi Technology | Beamforming: Standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth |
Operating Frequency | 1 x 2.4 GHz 1 x 5 GHz 2 x 5 GHz |
Encryption | 64-bit WEP 128-bit WEP WPA2-PSK WPA-PSK WPA-Enterprise WPA2-Enterprise Radius with 802.1x WPS support |
Firewall & Access Control | Firewall: SPI intrusion detection, DoS protection Access Control: Parental control, Network service filter, URL filter, Port filter |
Management | UPnP IGMP v1/v2/v3 DNS Proxy DHCP SNMP NTP Client DDNS Port Trigger Virtual Server DMZ System Event Log |
WAN Connection Type | Internet Connection Type: Automatic IP, Static IP, PPPoE (MPPE supported), PPTP, L2TP |
Ports | 1 x RJ45 for 10/100/1000 BaseT for WAN 4 x RJ45 for 10/100/1000/Gigabits BaseT for LAN 1 x USB 2.0 1 x USB 3.0 |
Buttons | WPS Button Reset Button Power Button Wireless on/off Button |
LED Indicators | 1 x Power 1 x WAN 1 x LAN 2 x Wireless 1 x WPS |
Power Supply | AC Input: 110~240 V (50~60 Hz) DC Output: 19 V with max. 3.42 A current |
VPN Server | IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP Server OpenVPN Server |
VPN Client | PPTP client L2TP client OpenVPN client |
Media Server | Image: Jpeg Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov |
Print Server | Multifunctional printer support (Windows only) LPR protocol support |
Dimensions | 9.6 x 9.6 x 2.6" (245 x 245 x 65 mm) |
Weight | 4 lb (1.8 kg) |
