Product Description

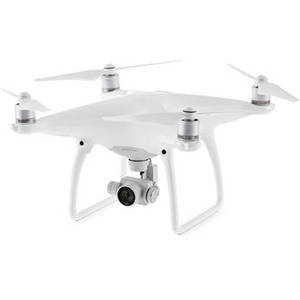

A sleek new design with magnesium unibody construction, obstacle avoidance sensor, dynamic range enhancing video modes, and a two-point-of-contact gimbal mount are just some the features DJI have introduced with the Phantom 4 Quadcopter. Thanks to improvements in efficiency as well as its intelligent power management system, the quadcopter boasts up to 28 minutes flying time. Its camera shoots DCI 4K (4096 x 2160) video at 24/25 fps and UHD 4K (3480 x 2160) at up to 30 fps. There is also a 120 fps mode in 1080p resolution for slow-motion effects. The camera will also take 12MP still photos in either DNG RAW or JPEG, with single shot, HDR, burst, and time-lapse modes to choose from.
Computerized flight control is nothing new, but the Phantom 4 is the first Phantom to be given a pair of eyes. Among other features, these front-facing visual sensors enable obstacle avoidance during automatic return home and allow it to track a subject. It also features Vision Position, a carryover from the Phantom 3 Professional and Advanced, which provides navigation for times when GPS is unavailable and the quadcopter is close to the ground.
One area where fixed-wing planes have traditionally held an advantage over multi-rotors is performance. The Phantom 4 aims to shake off this stigma. With its Sport Mode, the quadcopter can achieve a top speed of 44.7mph. That's enough speed to take to the races or follow fast-moving subjects, such as a vehicle or skier hurling down the slopes. Since you may need to slow down in a hurry, Active Braking brings to the quadcopter to a halt much faster than drag alone otherwise would.
Computerized flight control is nothing new, but the Phantom 4 is the first Phantom to be given a pair of eyes. Among other features, these front-facing visual sensors enable obstacle avoidance during automatic return home and allow it to track a subject. It also features Vision Position, a carryover from the Phantom 3 Professional and Advanced, which provides navigation for times when GPS is unavailable and the quadcopter is close to the ground.
One area where fixed-wing planes have traditionally held an advantage over multi-rotors is performance. The Phantom 4 aims to shake off this stigma. With its Sport Mode, the quadcopter can achieve a top speed of 44.7mph. That's enough speed to take to the races or follow fast-moving subjects, such as a vehicle or skier hurling down the slopes. Since you may need to slow down in a hurry, Active Braking brings to the quadcopter to a halt much faster than drag alone otherwise would.
Performance | |
Maximum Speed | 65.6' per second / 20 m/s (Sport mode) Ascent: 19.7' per second / 6 m/s (Sport mode) Descent: 13.1' per second / 4 m/s (Sport mode) |
Maximum Altitude | Above Sea Level: 19,685' / 6000 m Above Takeoff Point: 400' / 122 m (Software limit) |
Hovering Accuracy | Vertical: ±0.3' / 0.1 m (when Vision Positioning is active) or ±1.6' / 0.5 m Horizontal: ±1' / 0.3 m (when Vision Positioning is active) or ±4.9' / 1.5 m |
Flight Time | 28 minutes (depending on conditions) |
Flight Control System | |
GPS Mode | GPS / GLONASS |
Vision Positioning | Velocity Range: ≤ 32.8' per second / 10 m/s (6.6' / 2 m above the ground) Altitude Range: 0 to 32.8' / 0 to 10 m Operating Range: 0 to 32.8' / 0 to 10 m Operating Environment: Surface with clear pattern and adequate lighting (> 15 lux) |
Obstacle Sensory Range | 2 to 49' / 0.7 to 15 m Operating Environment: Surface with clear pattern and adequate lighting (> 15 lux) |
Transmitter | |
Frequency | 2.400 to 2.483 GHz |
Communication Distance | Up to 3.1 miles / 5 km (outdoors and unobstructed) |
Transmitter Power | 23 dBm |
Operating Current | 7.4 VDC at 1.2 A |
Battery | 6000 mAh lithium-ion polymer (LiPo) 2S |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Camera | |
Sensor | 1/2.3" 12 MP CMOS |
Lens | FOV: 94° Focal Length: 20 mm (35 mm equivalent) Aperture: f/2.8 |
Photo Resolution | Up to 12 MP (4000 x 3000) |
ISO Range | Video: 100 to 3200 Photo: 100 to 1600 |
Electronic Shutter Speed | 8 to 1/8000 second |
Video Resolutions | DCI 4K (4096 x 2160): 24p, 25p UHD 4K (3840 x 2160): 24p, 25p, 30p 2.7K (2704 x 1520): 24p, 25p, 30p 1080p (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p, 120p 720p (1280 x 720): 24p, 25p, 30p, 48p, 50p, 60p |
Photo Modes | Single Shot Burst Shooting: 3/5/7 shots Auto Exposure Bracketing (AEB): 3/5 Bracketed Frames at 0.7 EV Bias Time-lapse, HDR |
File Formats | Video: MPEG-4 AVC/H.264 in MOV wrapper (up to 60 Mbps) Photo: JPEG, DNG RAW |
Recording Media | Type: microSDHC/SDXC card up to 64 GB Format: FAT32 / exFAT Note: Class 10, UHS-1 or faster card required (64 GB maximum size) |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Gimbal | |
Control Range | -90° to +30° |
Flight Battery | |
Chemistry | Lithium-ion polymer (LiPo) |
Capacity | 5350 mAh, 81.3 Wh |
Configuration | 4S |
Voltage | 15.2 VDC |
Weight | 16.3 oz / 462 g |
Maximum Charging Power | 100 W |
Operating Temperature | 14 to 104°F / -10 to 40°C |
Charger | Voltage: 17.4 VDC 100 W |
General | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Dimensions | Not specified by manufacturer |
Weight | With battery: 3 lb / 1.4 kg |
