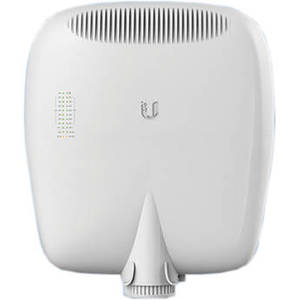

EP-S16 EdgePoint 16-Port Gigabit PoE-Compliant WISP Switch
Product Description
The EP-S16 EdgePoint 16-Port Gigabit PoE-Compliant WISP Switch from Ubiquiti is designed to simplify your hardware by replacing the network cabinet, which usually contains a patch panel, power rack, multiple PoE adapters, switch, router, modem, and more. It is encased in a die-cast aluminum alloy and polycarbonate shell with UV resistance, and features a combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support. With the EP-S16, you'll have access to a total of sixteen ports: two input or output ports with 54V or 24V / 1.4A passive PoE, two output ports with 54V or 24V / 1.4A passive PoE, and twelve PoE+ or 24V / 0.7A passive PoE output ports. Furthermore, use the EdgePoint software, accessible via a network port and a web browser, to monitor and manage your network.
| Enclosure Material | Die-cast Aluminum Alloy and Polycarbonate with UV Resistance |
| Ports | 1 x RJ45 Serial Port Data Ports: 16 x 10/100/1000 RJ45 Ports 2 x 1/10 Gbps SFP+ Ports |
| Processor | ARM Cortex-A9 400 MHz |
| System Memory | 256 MB DDR3 RAM |
| Code Storage | 32 MB |
| Button | Reset |
| LEDs | System Power 1 to 16 Speed/Link/Activity, PoE SFP Speed/Link/Activity |
| Pole Mount | Yes |
| Wall Mount | Yes |
| Power | |
| Max Power Consumption | 40 W (Excludes PoE Output) |
| Power Input | 1 x DC Terminal Block or 2 x RJ45 (Ports 1 and 2) |
| Power Supply | Min. 54 V / 0.8 A (Excludes PoE Output Power) |
| DC Input | 54 VDC, 6 A |
| Passive PoE | Input: 2 x 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2 (Do NOT configure port 1 or 2 in PoE output mode if you are using PoE input power sources.) Output: 4 x 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4 12 x 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16 |
| Monitoring | 1 x DC Terminal Block, Input Power 2 x RJ45, Ports 1 and 2, PoE Input or Output Power 14 x RJ45, Ports 3 to 16, PoE Output Power |
| Voltage Range | 42 to 56 VDC |
| Environmental | |
| Operating Temperature | -40 to 149°F (-40 to 65°C) |
| Operating Humidity | 10 to 90% Noncondensing |
| General | |
| Certifications | CE, FCC, IC |
| Dimensions | With Wall-Mount: 12.86 x 15.07 x 4.15" (326.6 x 382.7 x 105.5 mm) Without Wall-Mount: 12.86 x 15.07 x 3.50" (326.6 x 382.7 x 88.8 mm) |
| Weight | With Wall-Mount: 8.38 lbs (3.8 kg) Without Wall-Mount: 7.5 lbs (3.4 kg) |
