AFi-HD AmpliFi High Density Router with 2 Mesh Points


From AMPLIFI | Model #: AMAFIHD



See more in

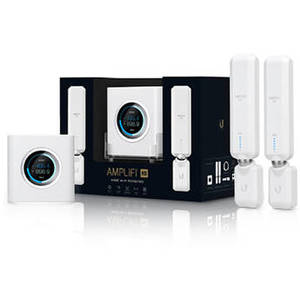

AFi-HD AmpliFi High Density Router with 2 Mesh Points

Product Description

Transform your Wi-Fi with the AFi-HD AmpliFi High Density Router with 2 Mesh Points from Uniquiti Networks. This aesthetically pleasing router can be the centerpiece of an end table as it features a white plastic housing complete with a 1.6" display depicting various aspects of the network. Included with this router are two extender antennas designed to assist in extending your wireless network to areas of your home or office that may be out of reach of the router. Each antenna features dedicated signal LEDs to show signal strength along with a magnetic connector from which the top portion of the antenna can be adjusted for optimal signal reception.

The included AmpliFi router comes compatible with 802.11a/b/g/n/ac Wi-Fi network standards and operates on the 2.4 GHz band supporting data speeds of up to 450 Mbps and the 5 GHz band supporting data speeds up to 1300 Mbps. Additionally users benefit from up to 26 dBm transmit power along with a dual-band tri-polarity antenna providing a strong, reliable signal. Along with enhanced wireless connectivity, users can connect Ethernet enabled devices to any of the four Gigabit Ethernet ports located on the back of the router.

Included with the base station router are two high density wireless network extenders. These extenders operate on the 2.4 GHz band supporting data rates of up to 450 Mbps and the 5 GHz band supporting data rates of up to 1300 Mbps, and they also come compatible with 802.11a/b/g/n/ac Wi-Fi standards. In addition to enhanced Wi-Fi data rates, each extender supports 3x3 MIMO technology along with a maximum transmit power of up to 26 dBm.
Router
Enclosure Characteristics Plastic (PC)
Management Interface Ethernet or Wi-Fi
Networking Interface 1 x WAN
4 x LAN
Wi-Fi / Gigabit Ethernet
Power Consumption 11 W (max.)
Power Method 9 V USB
Power Supply 9 V, 1.7 A USB adapter
Voltage 9 V ± 10%
ESD/EMP Protection ± 24 kV air/contact
Buttons 1 x Reset to defaults
Antennas 3 x Dual-band antennas, tri-polarity
LEDs White LED
Display 1.6" / 40.6 mm diagonal
240 x 240, 212 ppi
G+F touch
Full color
Wi-Fi Standards 802.11a/b/g/n/ac
MIMO 3x3
Data Rates 2.4 GHz: 450 Mbps
5 GHz: 1300 Mbps
Power Save Supported
Wireless Security WPA2-PSK AES/TKIP
Temperature & Humidity Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 5 to 95% non-condensing
Certifications FCC / CE / IC
Suggested Max. TX Power 26 dBm
Supported Data Rates (Mbps) 802.11ac: 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Dimensions 3.91 x 3.85 x 3.92" / 99.5 x 97.8 x 99.6 mm
Weight 14.46 oz / 410 g
Range Extender
Enclosure Characteristics White color PC materials with soft touch paint
Management Interface Wi-Fi
Networking Interface Wi-Fi, BLE 4.0
Power Consumption 7 W (max.)
Power Method AC input
Power Supply 9 V, 1.5 A
ESD/EMP Protection ±24 kV air/contact
Buttons Reset
Antennas 1 x Dual-band antenna
LEDs 5 Blue LEDs (link/signal strength 1-4)
Power Save Supported
Wireless Security WPA2-PSK AES/TKIP
Temperature & Humidity Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 5 to 95% non-condensing
Certifications FCC / CE / IC
Suggested Max. TX Power 26 dBm
MIMO 3x3
Data Rates 2.4 GHz: 450 Mbps
5 GHz: 1300 Mbps
Wi-Fi Standards 802.11a/b/g/n/ac
Supported Data Rates 802.11ac 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Dimensions Base Dimensions: 1.65 x 3.02 x 1.04" / 42.0 x 76.7 x 26.5 mm
Body Dimensions: 1.81 x 7.05 x 1.06" / 46 x 179 x 27 mm
Weight Base Weight: 3.52 oz / 100 g
Body Weight: 3.70 oz / 105 g
