ew 572 G3 Wireless Instrument System with CI 1 Guitar Cable (G: 566 to 608 MHz)
Product Description

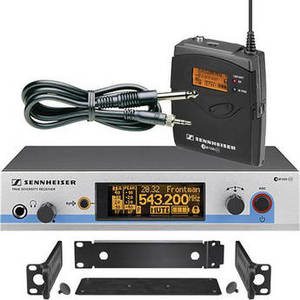

The Sennheiser ew 572 G3 Wireless Instrument System provides dependable wireless performance for guitarists and musicians on stage, in rehearsals, while recording, etc. The system includes an EM 500 UHF diversity receiver, an SK 500 bodypack transmitter, a CI 1 1/4" phone instrument cable, and a rackmount kit. The transmitter and receiver synchronize channel and frequency at the touch of a button.
The bodypack allows you to charge the (optional) rechargeable pack while it remains in the transmitter. A back-lit display allows for easy operation under dimly lit conditions and its user-friendly menu makes operation quick and easy.
| System | |
| Type of System | True diversity UHF wireless instrument system |
| RF Carrier Frequency Range | G: 566 to 608 MHz |
| Approx. Working Range | Not specified by manufacturer |
| Overall Frequency Response | Line: 25 Hz to 18 kHz Mic: 80 Hz to 18 kHz |
| Signal-to-Noise Ratio | > / - 115 dBA |
| # Of Channels | 1680 20 Channel Banks, 6 Fixed Banks, 32 Factory Preset Channels each |
| Receiver | |
| Type of Receiver | EM 500 half-rack mountable true diversity UHF |
| Type of Outputs | Balanced XLR Unbalanced 1/4" (6.3 mm) phone |
| Headphone Monitoring | 1/4" (6.3 mm) phone (front panel) |
| Power Requirements | 12 VDC |
| Battery Type/Approx. Life | Not Applicable |
| Display | Back-lit LCD display |
| Mounting Options | GA 3 rackmount kit (included) |
| Antenna Type | BNC type x5 |
| Dimensions (W x D x H) | 8.35 x 7.95 x 1.69" (212 x 202 x 43 mm) |
| Weight | 2.16 lb (980 g) |
| Transmitter | |
| Type of Transmitter | SK 500 bodypack transmitter |
| Type of Input Connector | Locking 1/8" (3.5 mm) mini |
| Type of Microphone | CI 1 instrument cable |
| Polar Pattern | Not Applicable |
| Interchangeable Mic Heads | Not Applicable |
| Battery Type/Approx. Life | AA 1.5 V Batteries x2 (8 hours typical) |
| Mute Switch | Programmable mute function |
| Level Control | Yes |
| Antenna Type | 1/4 Wave |
| Display | Back-lit LCD |
| Dimensions (W x D x H) | 3.23 x 2.52 x 0.94" (82 x 64 x 24 mm) |
| Weight | 5.6 oz (160 g) |
