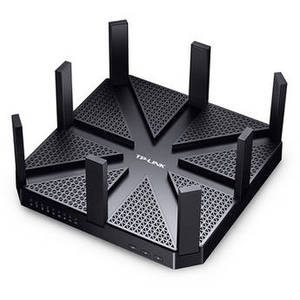

Archer C5400 Tri-Band MU-MIMO Wireless AC5400 Gigabit Router
Product Description
Utilizing both Advanced NitroQAM and 4-Stream technologies, the Archer C5400 Tri-Band MU-MIMO Wireless AC5400 Gigabit Router from TP-Link is capable of achieving combined wireless data transfer rates of up to 5334 Mbps. Combine the enhanced data transfer rates with the ability to connect to any of three wireless frequencies, one 2.4 GHz and two 5 GHz frequencies, and users can connect to the least congested band for optimal network performance. TP-Link has even incorporated their own Smart Connect technology right into this router to automatically connect devices to the band best suited for their network activity ensuring bandwidth is allocated properly giving all clients a high quality network experience.
Most routers are capable of communicating with one or two devices simultaneously which can in turn result in network congestion as devices wait in line to send and receive their data. The Archer C5400 utilizes MU-MIMO technology to provide four separate data highways giving up to four devices the ability to communicate with the router and the network all at the same time. Inside the Archer C5400 you will find a 1.4 GHz dual-core CPU along with 3 co-processors designed to support and manage the high speed data highways flowing through the router. The external housing of this router is adorned by eight high power antennas designed to provide maximum coverage and enhanced wireless connections. In addition to enhanced wireless connectivity, the Archer C5400 comes equipped with four Gigabit Ethernet ports, a single USB 3.0 port and a single USB 2.0 port.
Most routers are capable of communicating with one or two devices simultaneously which can in turn result in network congestion as devices wait in line to send and receive their data. The Archer C5400 utilizes MU-MIMO technology to provide four separate data highways giving up to four devices the ability to communicate with the router and the network all at the same time. Inside the Archer C5400 you will find a 1.4 GHz dual-core CPU along with 3 co-processors designed to support and manage the high speed data highways flowing through the router. The external housing of this router is adorned by eight high power antennas designed to provide maximum coverage and enhanced wireless connections. In addition to enhanced wireless connectivity, the Archer C5400 comes equipped with four Gigabit Ethernet ports, a single USB 3.0 port and a single USB 2.0 port.
Hardware | |
Interface | 4 x 10/100/1000 Mbps LAN ports 1 x 10/100/1000 Mbps WAN port 1 x USB 3.0 port + 1 USB 2.0 port |
Button | Wireless On/Off button Power On/off button LED On/off button WPS button Reset button |
Antenna | 8 x High-performance antennas |
External Power Supply | 12 V / 5 A |
Wireless | |
Wireless Standards | IEEE 802.11ac/n/a 5 GHz IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 5 GHz Band 1: Up to 2167 Mbps 5 GHz Band 2: Up to 2167 Mbps 2.4 GHz: Up to 1000 Mbps |
Reception Sensitivity | 5 GHz 11a 6 Mbps: -94 dBm 11a 54 Mbps: -76 dBm 11ac HT20 (MCS8): -68 dBm 11ac HT20 (MCS11): -61 dBm 11ac HT40 (MCS9): -64 dBm, 11ac HT40 (MCS11): -57 dBm 11ac HT80: -60 dBm 2.4 GHz 11g 54M: -77 dBm 11n HT20 (MCS8): -73 dBm, 11ac HT20 (MCS11): -63 dBm 11ac HT40 (MCS9): -67 dBm, 11ac HT40 (MCS11): -62 dBm |
Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
Transmission Power | CE <20 dBm (2.4 GHz) <23 dBm (5.15 GHz to 5.35 GHz) <23 dBm (5.47 GHz to 5.725 GHz) FCC <30 dBm |
Guest Network | 1 x 2.4 GHz guest network 1 x 5 GHz guest network |
Software | |
QoS (Quality of Service) | WMM, Bandwidth Control |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access) |
Management | Access Control Local Management Remote Management |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec |
Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Protocols | Supports IPv4 and IPv6 |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Other Specifications | |
Certifications | CE, FCC, RoHS |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8/8.1/10MAC OS, NetWare, UNIX or Linux |
Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -40 to 158°F / -40 to 70°C Operating Humidity: 10 to 90% non-condensing Storage Humidity: 5 to 90% non-condensing |
Dimensions & Weight | |
Dimensions | 9.1 X 9.1 X 1.7" / 230 X 230 X 43 mm |
Weight | Not specified by manufacturer |
