Product Description

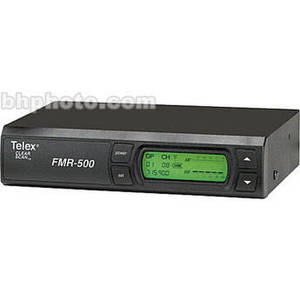

The Telex FMR-500 is a half-rack mount wireless microphone receiver designed for the Telex FMR-500 wireless microphone series. Diversity reception, results in minimal RF drop-out and interference. The FMR-500 features balanced XLR and 1/4" phone outputs and the back-lit LCD display provides, transmitter battery status, channel and frequency, diversity status, radio frequency and audio level. The Clear Scan auto channel selection allows quick setup, transmitter matching, and new channel selection if RF conditions change.
| Type of Receiver | FMR-500 UHF Diversity |
| RF Carrier Frequency Range | Band A - 648 - 676MHz |
| Approx. Working Range | not specified by manufacturer |
| Overall Frequency Response | 50Hz to 15kHz +/- 2dB |
| Signal-to-Noise Ratio | > 100dB A Weighted |
| # Of Channels | 1,112 in 25kHz steps |
| Type of Output(s) | Balanced 3-pin XLR Balanced 1/4" Phone |
| Headphone Monitoring | No |
| Power Requirements | 12v AC/DC 300mA |
| Battery Type/Approx. Life | No battery, 12v AC/DC 300mA |
| Display | Backlit LCD -Group/Channel, Frequency, Transmitter Battery, Diversity Status, RF and Audio Level Meters |
| Mounting Options | Includes single and dual rack mount hardware with front mount antenna cables |
| Antenna Type | Flexible external 1/4 wave |
| Dimensions | 1.72 x 7.5 x 5.9" (43.69 x 190.50 x 150mm) (HxWxD) |
| Weight | not specified by manufacturer |
