Product Description

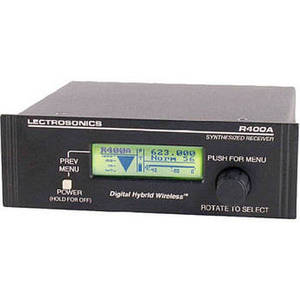

Designed for fixed installation, the Lectrosonics R400A receiver is a half-rack unit featuring Lectrosonic's digital hybrid technology. The dual antennas are an affirmation to it's Smart Diversity enhanced reception circuitry. The rear panel features both XLR and 1/4" phone output connections, both with output level control adjust. A comprehensive LCD displays pilot tone, antenna phase, transmitter battery status, audio level, RF level, battery timer, frequency, and transmitter switch settings.
| Type of Receiver | R400 |
| RF Carrier Frequency Range | Block 22: TV Channels 29 to 33 (563.200 to 588.700MHz) |
| Approx. Working Range | not specified by manufacturer |
| Overall Frequency Response | 30Hz to 20kHz (+/- 1dB) |
| Signal-to-Noise Ratio | @ receiver output (dB)- SmartNR Off: 103.5dBSmartNR Normal: 107dB SmartNR Full: 108.5dB |
| # Of Channels | 256 User Selectable UHF Frequencies |
| Type of Output(s) | Balanced: 3-pin XLR Unbalanced: 1/4" Phone |
| Headphone Monitoring | No |
| Power Requirements | Minimum 8 volts to maximum 18 volts DC; 1.6 W, 200mA maximum |
| Battery Type/Approx. Life | not applicable, DC power only |
| Display | LCD Main Window: Pilot tone; antenna phase, transmitter battery status, audio level, RF level, battery timer, frequency, and Transmitter switch setting |
| Mounting Options | Optional RMPR400-1 / RMPR400-2, single and dual unit rack mount kits. |
| Antenna Type | Antenna Type |
| Dimensions | 5.50 x 1.75 x 6.25" (14 x 4.5 x 16cm) (WxHxD) |
| Weight | 12.4 oz |
