Product Description

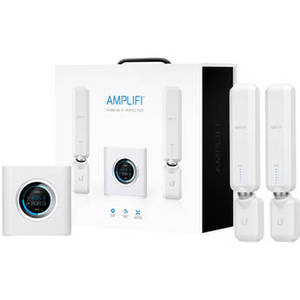

Transform your Wi-Fi with the AFi AmpliFi Standard Home Wi-Fi Router from Ubiquiti Networks. This aesthetically pleasing router can be the centerpiece of an end table as it features a white plastic housing complete with a 1.6" display depicting various aspects of the network. This AmpliFi router comes compatible with 802.11a/b/g/n/ac Wi-Fi network standards and operates on the 2.4 GHz band supporting data speeds of up to 450 Mbps and the 5 GHz band supporting data speeds up to 1300 Mbps. Additionally, users benefit from up to 24 dBm transmit power along with a dual-band tri-polarity antenna providing a strong, reliable signal. Along with enhanced wireless connectivity, users can connect Ethernet enabled devices to any of the four Gigabit Ethernet ports located on the back of the router.
| Router | |
| Enclosure Characteristics | Plastic (PC) |
| Management Interface | Ethernet or Wi-Fi |
| Networking Interface | 1 x WAN 4 x LAN Wi-Fi / Gigabit Ethernet |
| Power Consumption | 11 W (max.) |
| Power Method | 9 V USB |
| Power Supply | 9 V, 1.7 A USB adapter |
| Voltage | 9 V ± 10% |
| ESD/EMP Protection | ± 24 kV air/contact |
| Buttons | 1 x Reset to defaults |
| Antennas | 1 x Dual-band antenna, tri-polarity |
| LEDs | White LED |
| Display | 1.6" / 40.6 mm diagonal 240 x 240, 212 ppi G+F touch Full color |
| Wi-Fi Standards | 802.11a/b/g/n/ac |
| MIMO | 3x3 |
| Data Rates | 2.4 GHz: 450 Mbps 5 GHz: 1300 Mbps |
| Power Save | Supported |
| Wireless Security | WPA2-PSK AES/TKIP |
| Temperature & Humidity | Operating Temperature: 14 to 131°F / -10 to 55°C Operating Humidity: 5 to 95% non-condensing |
| Certifications | FCC / CE / IC |
| Suggested Max. TX Power | 24 dBm |
| Supported Data Rates (Mbps) | 802.11ac: 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80) 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS15, HT 20/40) 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Dimensions | 3.91 x 3.85 x 3.92" / 99.5 x 97.8 x 99.6 mm |
| Weight | 14.46 oz / 410 g |
