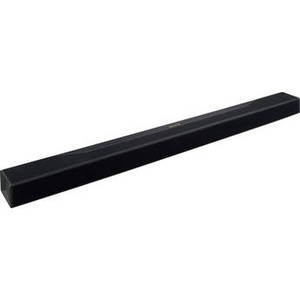

Elite FS-EB70 300-Watt 3.1.2-Channel Network Soundbar System
Product Description
Enjoy an immersive home theater experience with the Pioneer Elite FS-EB70 300-Watt 3.1.2-Channel Network Soundbar System. The soundbar features a 3.1.2-channel configuration, which accounts for the included wireless subwoofer and integrated up-firing Atmos speakers, which will serve the same function for DTS:X-encoded media. The included receiver features an optical, USB, stereo RCA, and four HDMI inputs, plus an ARC-compatible HDMI output. Built-in Bluetooth technology allows you to stream wirelessly from your compatible devices. The soundbar can either be placed on a shelf or wall-mounted.
| Receiver | |
| Channels | 3.1.2 |
| Amplification | Class D |
| Power Output | 50 W per channel @ 4 Ohms, 1 kHz, 1% THD, FTC |
| Audio Formats Supported | Dolby: Atmos, TrueHD, Dolby Digital Plus DTS: DTS:X, DTS HD Master Audio, DTS Neural:X, DTS-HD, DTS High Resolution Audio, DTS 96/24, DTS-ES, DTS-HD Express |
| File Support | MP3, WMA, WAV, AIFF, AIF, AIFC, AFC, AAC, M4A, MP4, 3GP, 3G2, FLAC, DSD, DSF, DFF, VR, MLP |
| Pass-Through | Ultra HD pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit) |
| Upscaling | 1080p to 4K |
| ARC (Audio Return Channel) | Yes |
| Wireless Connectivity | Bluetooth 4.1 + LE Dual-band 2.4 / 5 GHz IEEE 802.11a/b/g/n Wi-Fi Apple AirPlay DTS Play-Fi (via future firmware update) FireConnect (via future firmware update) Wireless connection to subwoofer |
| Inputs | 4 x HDMI 1 x Optical TOSLINK 1 x USB 1 x Stereo RCA |
| Outputs | 1 x HDMI 1 x RCA subwoofer pre-out |
| Speaker Connectors | 1 x Proprietary connector to soundbar |
| Other Connections | 1 x Ethernet (10BASE-T/100BASE-TX) 1 x FM antenna 1 x Speaker setup mic in |
| AM/FM Tuner | No / Yes |
| AM/FM Presets | 40 |
| FM Frequency Range | 87.5 to 107.9 MHz |
| Input Sensitivity and Impedance | Line: 1 kHz, 50 W / 4 Ohms Unbalanced: 200 mV / 47 kOhm |
| RCA Output Level and Impedance | Subwoofer Pre-Out, Rated: 1 V / 470 Ohms |
| Tone Control | Bass: ±10 dB, 90 Hz Treble: ±10 dB, 7.5 kHz |
| Signal-to-Noise Ratio | 80 dB (IHF-A, line in, sp out) |
| Soundbar | |
| Drivers | Front L/R: 4x 2.75 x 1.56" (70 x 40 mm) cones Center: 2x 2.75 x 1.56" (70 x 40 mm) cones Height L/R: 2x 2.28" (58 mm) cones |
| Impedance | 4 Ohms |
| Frequency Response | 100 Hz to 20 kHz |
| Crossover Frequency | 180 Hz |
| Enclosure Type | Sealed |
| Input | Proprietary connection from receiver |
| Output Sound Pressure Level | Front L/R, Center: 78 dB / W / m Height L/R: 78.6 dB / W / m |
| Maximum Input Power | 50 W |
| Wall Mountable | Yes |
| Wireless Subwoofer | |
| Enclosure | Bass reflex |
| Driver | 1x 6.3" (16 cm) cone |
| Rated Power Output | 50 W @ 4 Ohms, 100 Hz, 1% THD, FTC |
| Output Sound Pressure Level | 90 dB/m, 15 mV/each (max volume) |
| Frequency Response | 30 to 200 Hz |
| Crossover Frequency | 180 Hz |
| Physical Specifications | |
| Operating Power Consumption | Receiver: 60 W Receiver, No Sound: 16 W Subwoofer: 15 W |
| Standby Power Consumption | Receiver, Network Off: 0.2 W Receiver, Network On / HDMI Standby Through: 2 W Subwoofer: Not specified by manufacturer |
| Power Requirements | Receiver: 100 to 240 VAC, 50/60 Hz Subwoofer: 120 VAC, 60 Hz |
| Dimensions (W x H x D) | Receiver, with Stand: 17.5 x 2.69 x 11.94" (445 x 69 x 303 mm) Soundbar: 37.38 x 2.19 x 3.13" (950 x 55 x 80 mm) Subwoofer: 10.25 x 13.31 x 10.56" (261 x 338 x 269 mm) |
| Weight | Receiver: 8.8 lb (4 kg) Soundbar: 5.07 lb (2.3 kg) Subwoofer: 13.67 lb (6.2 kg) |
