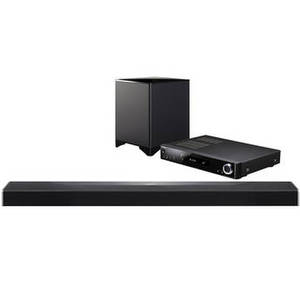

SBT-A500 300-Watt 3.1.2-Channel Network Soundbar System
Product Description
Enjoy an immersive home theater experience with the Onkyo SBT-A500 300-Watt 3.1.2-Channel Network Soundbar System. The soundbar features a 3.1.2-channel configuration, which accounts for the included wireless subwoofer and integrated up-firing Atmos speakers, which will serve the same function for DTS:X-encoded media. The included receiver features an optical, USB, stereo RCA, and four HDMI inputs, plus an ARC-compatible HDMI output. Built-in Bluetooth technology allows you to stream wirelessly from your compatible devices. The soundbar can either be placed on a shelf or wall-mounted.
| Receiver | |
| Channels | 3.1.2 |
| Power Output | 50 W per channel @ 4 Ohms, 1 kHz, 1% THD, 2-channels driven, FTC |
| Audio Formats Supported | Dolby: Atmos, TrueHD, Dolby Digital Plus DTS: DTS:X, DTS-HD, DTS Master Audio |
| File Support | MP3, WMA, WAV, AIFF, AIF, AIFC, AFC, AAC, M4A, MP4, 3GP, 3G2, FLAC, DSD, DSF, DFF, VR, MLP |
| Pass-Through | 3D, 4K, HDR, BT.2020, Deep Color, x.v.Color, LipSync, CEC |
| Upscaling | 1080p to 4K |
| ARC (Audio Return Channel) | Yes |
| Wireless Connectivity | Bluetooth 4.1 + LE Dual-band 2.4 / 5 GHz IEEE 802.11a/b/g/n Wi-Fi Apple AirPlay DTS Play-Fi (via future firmware update) FireConnect (via future firmware update) Wireless connection to subwoofer |
| Inputs | 4 x HDMI 1 x USB (front) 1 x Optical TOSLINK 1 x Stereo RCA |
| Outputs | 1 x HDMI 1 x 1/8" (3.5 mm) headphone (front) |
| Speaker Connectors | 1 x Proprietary connector to soundbar |
| Other Connections | 1 x Ethernet 1 x FM antenna 1 x Speaker setup mic in |
| HDCP Standard | 2.2 (on all HDMI inputs and output) |
| AM/FM Tuner | No / Yes |
| AM/FM Presets | 40 |
| FM Frequency Range | 87.5 to 107.9 MHz |
| Input Sensitivity and Impedance | 200 mV / 47 kOhm (line, unbalanced) |
| Tone Control | Bass: ±10 dB, 90 Hz Treble: ±10 dB, 7.5 kHz |
| Signal-to-Noise Ratio | 80 dB (digital, IHF-A) |
| Soundbar | |
| Drivers | Front L/R: 4x 2.75 x 1.56" (70 x 40 mm) cone woofers Center: 2x 2.75 x 1.56" (70 x 40 mm) cone woofers Height L/R: 2x 2.28" (58 mm) cone woofers |
| Frequency Response | 100 Hz to 20 kHz |
| Enclosure Type | Acoustic suspension |
| Input | Proprietary connection from receiver |
| Output Sound Pressure Level | Front L/R, Center: 78 dB / W / m Height L/R: 78.6 dB / W / m |
| Wall Mountable | Yes |
| Wireless Subwoofer | |
| Enclosure | Bass reflex |
| Driver | 1x 6.5" (16 cm) cone |
| Power Output | 50 W @ 4 Ohms, 100 Hz, 1% THD, FTC |
| Output Sound Pressure Level | 90 dB / W / m |
| Frequency Response | 30 to 200 Hz |
| Physical Specifications | |
| Operating Power Consumption | Receiver: 60 W Subwoofer: 15 W |
| Standby Power Consumption | Receiver, Network Off: 0.2 W Receiver, Network On: 2 W Subwoofer: 0.32 W |
| Power Requirements | Receiver, Subwoofer: 100 to 240 VAC, 50/60 Hz |
| Dimensions (W x H x D) | Receiver, with Stand: 17.13 x 2.75 x 12.81" (435 x 70 x 325.5 mm) Soundbar: 37.38 x 2.19 x 3.13" (950 x 55 x 80 mm) Subwoofer: 10.25 x 13.25 x 10.63" (261 x 337 x 269 mm) |
| Weight | Receiver: 8.8 lb (4 kg) Soundbar: 5.07 lb (2.3 kg) Subwoofer: 13.67 lb (6.2 kg) |
