Product Description

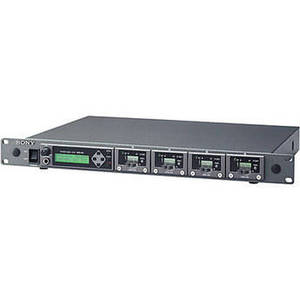

The Sony MB-8N/9F Tuner Base is a wireless microphone tuner module base that eliminates the need for multiple wireless receivers. The MB-8N/9F accommodates up to four Sony WRU-8N tuner modules that feature 188 user selectable UHF frequencies, LCD display and much more.
A built-in antenna splitter allows up to four MB-8N/9F Tuner Bases to be daisy-chained for simultaneous operation of up to 16 tuner modules and wireless microphone transmitters. The supplied PC control software enables full control of up to 49 tuner modules via PC. The MB-8N/9F Tuner Base is an ideal solution for theaters, sound stages, houses-of-worship and anywhere multiple wireless microphones are to be used simultaneously.
| Type of Receiver | UHF Four Bay Tuner Base |
| RF Carrier Frequency Range | UHF-TV channels 30-69 |
| Approx. Working Range | Not Specified By Manufacturer |
| Overall Frequency Response | 40Hz to 20kHz |
| Signal-to-Noise Ratio | Distortion: 1.0% or less |
| # Of Channels | 188 (per tuner module) |
| Type of Output(s) | XLR-3 pin type (x 4) balanced |
| Headphone Monitoring | TRS 1/4" Phone with level control |
| Power Requirements | AC 100 to 240V, 50/60Hz DC 10 to 24V |
| Battery Type/Approx. Life | Not Applicable |
| Display | LCD (tuner modules) |
| Mounting Options | 19-inch Rackmount |
| Antenna Type | Inputs: BNC-R type (x 2), 50 ohm (nominal) Outputs: (for cascade connection): BNC-R type (x 2), 50 ohm(nominal) |
| Dimensions (WxHxD) | 18.97 x 1.73 x 11.81" (482 x 44 x 300mm) |
| Weight | 8 lb 6 oz (3.7 kg) |
