Product Description

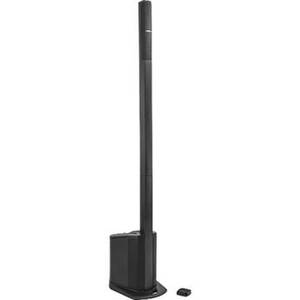

The Bose L1 Compact Wireless is a portable line array system designed to provide wide coverage, wired and wireless connectivity, and simple setup for musicians, DJs, and hosts at restaurants, parties, conferences, and other special events. It features proprietary technology and multiple drivers to deliver nearly 180° of coverage for audiences of up to 100 people. Wi-Fi and Bluetooth capabilities are provided by the included SoundTouch Wireless Link adapter, which connects via a supplied audio cable to the L1. The system uses interlocking components that require no cables or stands.
It sits at 16.5” high and has two 32.5” extensions for an extended height of 78.5”. XLR, RCA, 3.5mm, and 1/4” inputs allow you to connect a variety of sources such as a microphone, guitar, smartphone, and CD player. The built-in mixer offers controls for volume, treble, and bass, plus ToneMatch presets further enhance your tone. 1/4” and RCA outputs can easily be connected to a recorder or another L1 system.
The L1 Compact Wireless can be carried in a single trip due to its built-in handle and supplied carry bag for the extensions.
| Speaker System | |
| Inputs | 1 x XLR 3-pin female (balanced) 1 x 1/4" (balanced/unbalanced) 1 x 1/8" (3.5 mm) stereo mini-jack 2 x RCA coaxial (L/R pair) |
| Outputs | 1 x 1/4" (balanced/unbalanced) 2 x RCA coaxial (L/R pair) |
| Power Requirement | 100 to 240 VAC, 50/60 Hz, 200 W maximum |
| Peak Inrush Current | 9.7 A @ 120 V 18.2 A @ 230 V |
| Dimensions (H x W x D) | 16.5 x 13.3 x 16.8" / 418 x 339 x 426 mm (stand with array) 16.1 x 2.8 x 2.8" / 408 x 70 x 71 mm (array) 32.7 x 2.8 x 2.8" / 830 x 70 x 71 mm (extensions) 16.5 x 13.3 x 16.8" / 418 x 339 x 426 mm (assembled, collapsed) 78.5 x 13.3 x 16.8" / 1995 x 339 x 426 mm (assembled, expanded) |
| Weight | 24.6 lb / 11.2 kg (stand with array) 3 lb / 1.4 kg (array) 2.3 lb / 1 kg (extensions) 24.6 lb / 11.2 kg (assembled, collapsed) 29.2 lb / 13.2 kg (assembled, expanded) |
| Wireless Interface | |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wireless Range | Up to 30' / 9 m |
| Inputs | 1 x 1/8" (3.5 mm) aux input |
| Outputs | 1 x 1/8" (3.5 mm) audio / mini optical out |
| USB | 1 x Micro-USB |
| Dimensions (W x H x D) | 3.4 x 1.0 x 3.4" / 86 x 25 x 86 mm |
| Weight | 3.5 oz / 99.2 g |
