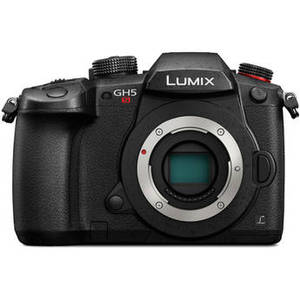

Lumix DC-GH5S Mirrorless Micro Four Thirds Digital Camera


From Panasonic | Model #: PADCGH5S



See more in


Lumix DC-GH5S Mirrorless Micro Four Thirds Digital Camera

Product Description

Proving that they can push the GH-series even farther into the video realm, the Panasonic Lumix DC-GH5S is a mirrorless Micro Four Thirds camera optimized for movie recording and low-light performance. Revolving around a 10.28MP Digital Live MOS sensor, DCI and UHD 4K video recording is possible at up to 60p and the large individual pixel size also affords impressive low-light performance to an extended ISO 204800, along with Dual Native ISO technology at ISO 400 and ISO 2500. Coupled with an updated Venus Engine, the sensor and processor combination also enables faster readout speeds along with 1.3x less rolling shutter distortion compared to previous GH-series cameras. Internal DCI 4K30p recording is available with 4:2:2 10-bit sampling and a full-size HDMI A connector can be used to simultaneously output to an optional external monitor or recorder. The sensor's extended sensitivity range has also been used to promote working with V-Log L and Hybrid Log Gamma HDR modes for effectively increasing your dynamic range and affording more flexibility when color grading during post-production.

Beyond its video prowess, the GH5S is no slouch when it comes to stills shooting, either. The sensor and Venus Engine combination enable recording 14-bit raw files with a top continuous shooting rate of 12 fps with single-shot AF, or up to 8 fps with continuous autofocus. Borrowing from the video side, 4K PHOTO modes are also available for shooting 8MP stills at up to 60 fps. Benefitting stills, the Depth-From-Defocus AF system works quickly and accurately using 225 dedicated AF areas, and is sensitive to -5 EV luminance for working in extreme low-light conditions.

Beyond imaging specs, the GH5S retains its professional build quality the GH-series is known for. The magnesium alloy body is fully weather-sealed for working in inclement conditions, and physical controls have been enhanced for easier tactile control. A large 3.68m-dot OLED electronic viewfinder is featured, for high-resolution eye-level monitoring, as well as a rear 3.2" 1.62m-dot LCD touchscreen with free-angle movement to suit working from high and low angles. Dual UHS-II SD memory card slots are available for flexible file recording and built-in Wi-Fi with NFC and Bluetooth wireless connectivity enable seamless image sharing and remote camera control from a mobile device.
Imaging
Lens Mount Micro Four Thirds
Camera Format Micro Four Thirds (2x Crop Factor)
Pixels Actual: 11.93 Megapixel
Effective: 10.28 Megapixel
Max Resolution 10 MP: 3680 x 2760
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Sensor Type / Size MOS, 17.3 x 13 mm
File Formats Still Images: JPEG, RAW
Movies: AVCHD Ver. 2.0, H.264, MOV, MP4, MPEG-4 AVC/H.264
Audio: AAC, Dolby Digital 2ch, Linear PCM (Stereo)
Bit Depth 14-Bit
Dust Reduction System Yes
Memory Card Type SD
SDHC
SDXC
Image Stabilization None
AV Recording
Video Recording Yes, NTSC/PAL
Video Format 4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps
3328 x 2496p at 23.98/24/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/24/25/29.97/50/59.94/120/240 fps
Aspect Ratio 16:9
Audio Recording Built-In Mic: With Video (Stereo)
Optional External Mic: With Video (Stereo + Mono)
Focus Control
Focus Type Autofocus
Focus Mode Continuous-Servo AF (C), Flexible (AFF), Manual Focus (M), Single-servo AF (S)
Autofocus Points Contrast Detection: 225
Viewfinder/Display
Viewfinder Type Electronic
Viewfinder Pixel Count 3,686,000
Viewfinder Eye Point 21.00 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 0.76x
Diopter Adjustment -4 to +3 m
Display Screen 3.2" Rear Touchscreen Swivel Touchscreen LCD (1,620,000)
Screen Coverage 100%
Exposure Control
ISO Sensitivity Auto, 160-51200 (Extended Mode: 80-204800)
Shutter Type: Electronic & Mechanical
Speed: 60 - 1/8000 Second
Type: Electronic & Mechanical
Speed: 30 - 1 Minute in Bulb Mode
1/24 - 1/16000 Second in Movie Mode
Type: Electronic
Speed: 1 - 1/16000 Second
Remote Control DMW-RSL1 (Optional)
Metering Method Center-Weighted Average Metering, Multiple, Spot Metering
Exposure Modes Modes: Aperture Priority, Manual, Programmed Auto, Shutter Priority
Metering Range: EV 0.0 - EV 18.0
Compensation: -5 EV to +5 EV (in 1/3 EV Steps)
White Balance Modes Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
Buffer/Continuous Shooting Up to 12 fps at 10.3 MP for up to 80 Frames in Raw Format
Up to 11 fps at 10.3 MP for up to 80 Frames in Raw Format
Up to 12 fps at 10.3 MP for up to 600 Frames in JPEG Format
Up to 11 fps at 10.3 MP for up to 600 Frames in JPEG Format
Up to 8 fps at 10.3 MP
Up to 7 fps at 10.3 MP
Up to 6 fps at 10.3 MP
Up to 5 fps at 10.3 MP
Up to 2 fps at 10.3 MP
Up to 60 fps at 8 MP
Flash
Flash Modes Auto
Auto/Red-Eye Reduction
Forced On
Forced On/Red-Eye Reduction
Off
Slow Sync
Slow Sync/Red-Eye Reduction
Built-in Flash No
Max Sync Speed 1 / 250 Second
Flash Compensation -3 EV to +3 EV (in 1/3 EV steps)
Dedicated Flash System TTL
External Flash Connection Hot Shoe, PC Terminal
Performance
Self Timer 10 Seconds, 2 Seconds
Interval Recording Yes
Connectivity 1/8" Headphone, 1/8" Microphone, 2.5mm Sub-mini (2-Ring), HDMI A (Full Size), USB 3.0, USB Type-C, Viera Link, X-Sync Socket
Wi-Fi Capable Yes
Power
Battery 1 x DMW-BLF19 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1860 mAh
Operating/Storage Temperature Operating
14 to 104°F (-10 to 40°C)
Humidity: 10 - 80%
Physical
Dimensions (W x H x D) 5.5 x 3.9 x 3.4" / 138.5 x 98.1 x 87.4 mm
Weight 1.45 lb / 660 g with battery and memory card
Warranty Length Limited 1-Year Warranty
