Impact-Mini 300W Self-Powered Subwoofer


From Velodyne Acoustics | Model #: VEIMINI



See more in

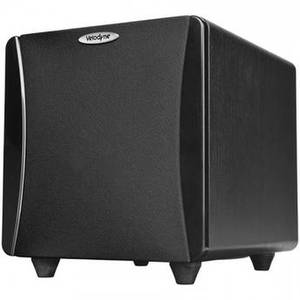

Impact-Mini 300W Self-Powered Subwoofer

Product Description

With its continued excellence in high performance bass reproduction Velodyne introduces the Impact-Mini Self-Powered Subwoofer. Designed for both professional and home entertainment enthusiasts with the capability to deliver a full, clear, and tight low-frequency response with its Maximum Dynamic Power (MDP) amplification. Its unique driver design features (1) active 6.5" front-firing aluminum cone, (1) passive 8" down-firing bass radiator, 2" copper-wound voice coils, and a beefy 64 oz magnet structure - this powerful combination enables this sub to reproduce the tightest "punch" at the highest sound levels in its class.

In addition, it features 180W RMS/300W peak power, low and high-pass crossovers, 0° or 180° phase adjustment, line-level/LFE/speaker level inputs, and a wide range of frequencies with superb sound quality and low distortion. With its compact 10" cube design, it's perfect for home theater, whole house audio systems, and anywhere high quality, compact bass projection is required.

Sub-Woofer
Type Active
Power Rating 180W RMS/300W Peak
Frequency Response 38 - 140Hz (±3dB)
Crossover Frequency Low-Pass: 50 - 200Hz
High-Pass: Full Range
Phase 0° or 180° (Adjustable)
Magnetic Characteristics 64 oz (4 lbs)
Impedance Not Specified By Manufacturer
Drivers 6.5" (165.1mm) Aluminum Cone
8" (203.2mm) Passive Radiators with Aluminum Cone
Enclosure Sealed
Inputs Speaker Level, LFE, Line Level (RCA)
Outputs Stereo, left/right, Speaker Level
Shielded No
General
Dimensions (HxWxD) 10 x 10 x 12" (254 x 254 x 304.8mm)
Shipping Weight 18.5 lbs (8.4kg)
Power Requirements 120VAC, 60Hz
Color Black
