Wideband UHF Antenna Multi-Coupler for Lectrosonics Portable Diversity Receivers
Product Description

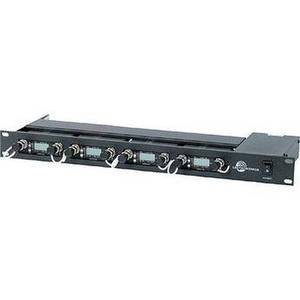

The Lectrosonics Wideband Multi-Coupler is a rack-mountable unit, designed to efficiently distribute signal and power to 4 installed Lectrosonics portable diversity receivers. The Multi-Coupler supports blocks 21 through 26 and preserves the sensitivity and overload performance of the installed receivers.
The solid, rack-mounted assembly is powered with an external 11 to 18VDC power supply (included) with individual auto-reset fuses for each receiver. The Multi-Coupler is a solid choice for operating multiple Lectrosonics portable receivers in performances, crucial recordings, production, etc.
| Carrier Frequency Range | 470 to 692MHz |
| Connector Type | RF Inputs: BNC Connectors x2 RF Ouputs: BNC Connectors x8 |
| Gain Control | Not Specified by Manufacturer |
| Impedance | Not Specified by Manufacturer |
| Operating Voltage | Input: +11 to +18VDC Consumption: 2 Amps Max. |
| Weight | 5 lbs (2.26kg) |
| Dimensions | 19 x 1.75 x 16.5" (48.26 x 4.44 x 41.91cm) |
