Product Description

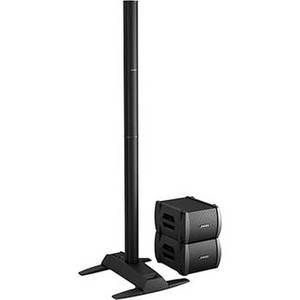

The Bose L1 Model II Double Bass Package delivers the audio fidelity expected from Bose in a sleek, lightweight and portable unit. The L1 Model II series is Bose's elite system, ideally suited for pro-level sound reinforcement for musicians DJ rigs and more. The L1 Model II Double Bass Package features an integrated mixer amplifier that also serves as the speaker's base. The power stand provides clean, precise amplification for L1 Model II system with up to two B1 bass modules.
Also included are two Bose B1 Bass module for reinforcing low-end frequencies and enhancing the sound of bass guitar, DJ rigs and more. The speaker features 24 small drivers, carefully positioned to ensure balanced audio signal at the direct and off-axis (sides) of the system. Setting up the L1 Model II is quick and easy; simply place the speaker extensions into the amplifier base, and slide the speaker on top of the extensions. Two extensions are included, and allow easy height adjustment.
Type | Self-powered, two-way |
Audio I/O | T1 ToneMatchTM port: DC output/data input Ethercon/RJ45 connector for a T1 ToneMatch audio engine Analog Input: Line-level input channel for ¼" TRS phone plugBass - Line Out: -4dBu (nominal), +9dBu (max.) (balanced TRS connection) -10dBu (nominal), +3dBu (max.) (unbalanced TS connection) Bass Module Out: Neutrik NL4 output for one or two B1 bass modules |
Power | AC power rating: 100-120V 50/60Hz 500W (USA/Canada); 220-240V 50/60Hz 500W (Europe)Peak inrush current: 32A @ 120V 60Hz (USA/Canada); 61A @ 230V 50Hz (Europe) |
Dimensions (HxWxD) | Power Stand: 5 x 10 x 27" (12.8 x 26.2 x 69.2cm)L1 Model II Loud Speakers: 43.50 x 3.50 x 4" (11.1 x 90 x 10.5cm)B1 Bass Module: 15 x 10.25 x 17" (38 x 26 x 45cm) |
Weight | Power Stand: 23.7 lb (10.7kg) L1 Model II Loud Speakers: Top: 16.3 lb (7.4kg), Bottom: 17.4 lb (7.9kg)B1 Bass Module: 25.1 lb (11.4kg) |
