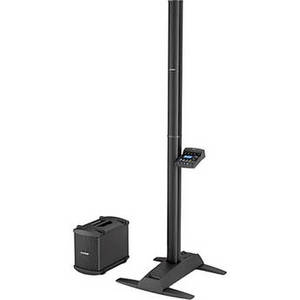

L1 Model II Single Bass PA Package


From Bose | Model #: BOL1M2SBT1



See more in


L1 Model II Single Bass PA Package

Product Description

The Bose L1 Model II Single Bass Package delivers the audio fidelity expected from Bose in a sleek, lightweight and portable unit. The L1 Model II series is Bose's elite system, ideally suited for pro-level sound reinforcement, musicians, DJ rigs, and more. The L1 Model II Single Bass Package features an integrated mixer amplifier that also serves as the speaker's base. The power stand provides clean, precise amplification for L1 Model II system with up to two B1 bass modules. Also included is the Bose B1 Bass module for reinforcing low-end frequencies and enhancing the sound of bass guitar, DJ rigs and more.

The ultra-low noise preamps provide high signal to noise ratio, and Bose's Proprietary ToneMatch presets on channels 1 and 2 optimize L1 system to match intended natural sound of specific instruments and microphones. The speaker features 24 small drivers, carefully positioned to ensure balanced audio signal at the direct and off-axis (sides) of the system. Setting up the L1 Model II is quick and easy; simply place the speaker extensions into the amplifier base, and slide the speaker on top of the extensions. Two extensions are included, and allow easy height adjustment.

Type Self-powered, two-way
Audio I/O T1 ToneMatchTM port: DC output/data input Ethercon/RJ45 connector for a T1 ToneMatch audio engine
Analog Input: Line-level input channel for ¼" TRS phone plug
Bass - Line Out: -4dBu (nominal), +9dBu (max.) (balanced TRS connection) -10dBu (nominal), +3dBu (max.) (unbalanced TS connection)
Bass Module Out: Neutrik NL4 output for one or two B1 bass modules
Power AC power rating:
100-120V 50/60Hz 500W (USA/Canada); 220-240V 50/60Hz 500W (Europe)
Peak inrush current:
32A @ 120V 60Hz (USA/Canada); 61A @ 230V 50Hz (Europe)
Dimensions (HxWxD) Power Stand:
5 x 10 x 27" (12.8 x 26.2 x 69.2cm)
L1 Model II Loud Speakers:
43.50 x 3.50 x 4" (11.1 x 90 x 10.5cm)
B1 Bass Module:
15 x 10.25 x 17" (38 x 26 x 45cm)
Weight Power Stand:
23.7 lb (10.7kg)
L1 Model II Loud Speakers:
Top: 16.3 lb (7.4kg), Bottom: 17.4 lb (7.9kg)
B1 Bass Module:
25.1 lb (11.4kg)
